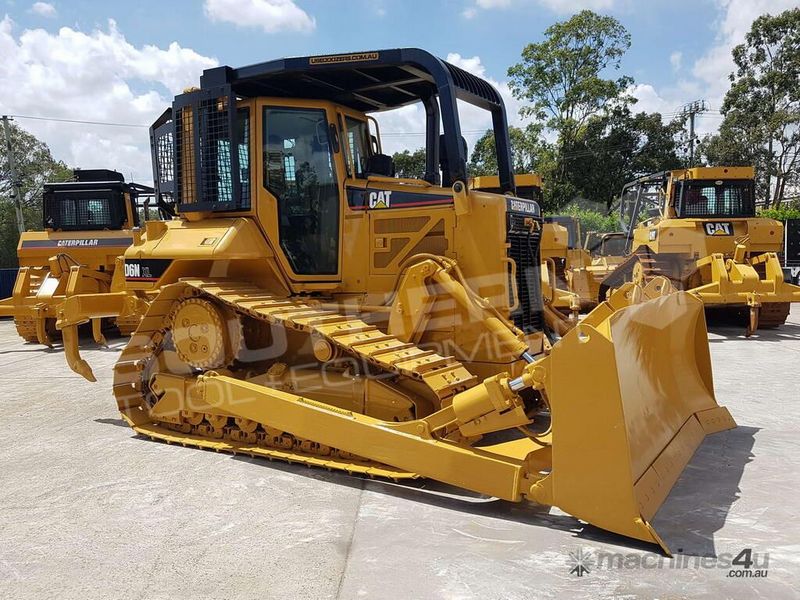

Caterpillar D6N XL
Browse All Caterpillar or Crawler Tractor Models
Contents:
Blades
| Blade Type | VPAT, SU |
| Xl Su - Blade Capacity | 5.6 yd3 (4.29 m3) |
| Xl Su - Blade Width | 10.46 ft in (3.19 m) |
| Xl Vpat - Blade Capacity | 4.16 yd3 (3.19 m3) |
| Xl Vpat - Blade Width | 10.73 ft in (3.28 m) |
Dimensions
| Width Over Tracks | 8.2 ft in (2500 mm) |
| Height To Top Of Cab | 10.2 ft in (3095 mm) |
| Length Of Track On Ground | 8.48 ft in (2581 mm) |
| Ground Clearance | 1.4 ft in (423.93 mm) |
| Track Gauge | 6.21 ft in (1890.02 mm) |
| Length W/O Blade | 12.27 ft in (3740 mm) |
| Length - Track On Ground | 100.39 in (2549.91 mm) |
| Height | 9.48 ft in (2886.46 mm) |
| Height - Rops/Canopy | 9.91 ft in (3.03 m) |
| Overall Length - Basic Tractor - With Drawbar | 12.27 ft in (3.74 m) |
| Width - Without Blade | 98.11 in (2492 mm) |
| Drawbar Height (Center Of Clevis) From Ground Face Of Shoes | 23.43 in (595.13 mm) |
Undercarriage
| Track Gauge | 6.21 ft in (1890 mm) |
| Standard Shoe Size | 24.01 in (610 mm) |
| Ground Pressure | 7.37 psi (50.82 kPa) |
| Ground Contact Area - Xl | 4822 in2 (3.12 m2) |
| Ground Pressure - Xl Ds | 7.37 psi |
| Ground Pressure - Xl Ftc | 7.24 psi |
| Grouser Height | 2.25 in (56.9 mm) |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 7 |
| Shoes/Side - Lgp | 46 |
| Shoes/Side - Xl | 40 |
| Track Gauge - Xl | 74 in (1879.6 mm) |
| Track On Ground - Xl | 100 in (2540 mm) |
| Track Rollers/Side - Lgp | 8 |
| Track Rollers/Side - Xl | 7 |
| Width - Shoe - Xl | 24 in (609.6 mm) |
| Ground Contact Area | 4882 in2 (3.15 m2) |
Ripper
| Beam Cross Section | 216x254 mm 8.5x10.0 in |
| Number Of Pockets | 3 |
| Maximum Penetration - Xl | 18.6 in (472.5 mm) |
| Ripper Type | Fixed Parallelogram |
| Overall Beam Width | 86.7 in (2202.2 mm) |
| Weight - Each Additional Shank | 172 lb (78.1 kg) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C6.6 ACERT |
| Net Power | 145 hp (108.2 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 439 cu in (7.2 L) |
| Bore | 4.4 in (110 mm) |
| Stroke | 5 in (127 mm) |
| Net Power - Iso 9249 | 145 hp (108.2 kw) |
| Net Power - Sae J1349 | 143 hp (106.7 kw) |
| Engine Model | Cat 3126B DITAAC |
| Flywheel Power | 145 hp (108.2 kw) |
| Net Power - Eu 80/1269 | 145 hp (108.2 kw) |
Operational
| Operating Weight | 36610 lb (16605 kg) |
| Fuel Capacity | 79 gal (299 L) |
| Cooling System Fluid Capacity | 9.3 gal (35 L) |
| Hydraulic Fluid Capacity | 7.8 gal (29.5 L) |
| Final Drives Fluid Capacity | 1.9 gal (7 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.3 mph (10.1 km/h) |
| Max Speed - Reverse | 7.5 mph (12 km/h) |
| 1.0 Forward | 2.1 mph (3.4 km/h) |
| 2.0 Forward | 3.6 mph (5.8 km/h) |
| 3.0 Forward | 6.3 mph (10.2 km/h) |
| 1.0 Reverse | 2.5 mph (4.1 km/h) |
| 2.0 Reverse | 4.3 mph (7 km/h) |
| 3.0 Reverse | 7.4 mph (12 km/h) |
| Drawbar Pull - 2.0 Forward | 38800 lb (17599.4 kg) |
| Drawbar Pull - 3.0 Forward | 21500 lb (9752.3 kg) |
| Drawbar Pull - 1.0 Forward | 71000 lb (32205.1 kg) |
Weights
| Operating Weight | 35020.4 lb (15885 kg) |
| Operating Weight - Power Shift Ftc - Xl | 34361 lb (15585.9 kg) |
| Operating Weight - Xl-Ds | 35020 lb (15884.9 kg) |
| Shipping Weight - Xl Ftc | 33703 lb (15287.5 kg) |
| Shipping Weight - Xl Ds | 34362 lb (15586.4 kg) |
Standard Blade
| Width | 10.8 ft in (3272 mm) |
| Height | 49 in (1244 mm) |
| Capacity | 4.2 yd3 (3.2 m3) |
| Cutting Depth | 20.5 in (520 mm) |
Service Refill Capacities
| Cooling System | 10.8 gal (40.7 L) |
| Fuel Tank | 79 gal (299.1 L) |
| Final Drive - Each | 1.8 gal (6.9 L) |
| Hydraulic Tank | 7.8 gal (29.6 L) |
Winch
| Flange Diameter | 19.8 in (503 mm) |
| Oil Capacity | 19.6 gal (74.1 L) |
| Winch Model | PA55 |
| Winch And Bracket Length | 45.1 in (1145.6 mm) |
| Drum Diameter | 10 in (254 mm) |
| Drum Width | 12.4 in (315 mm) |
| Winch Case - Width | 38.4 in (975.4 mm) |
| Weight* | 2814 lb (1276.5 kg) |
