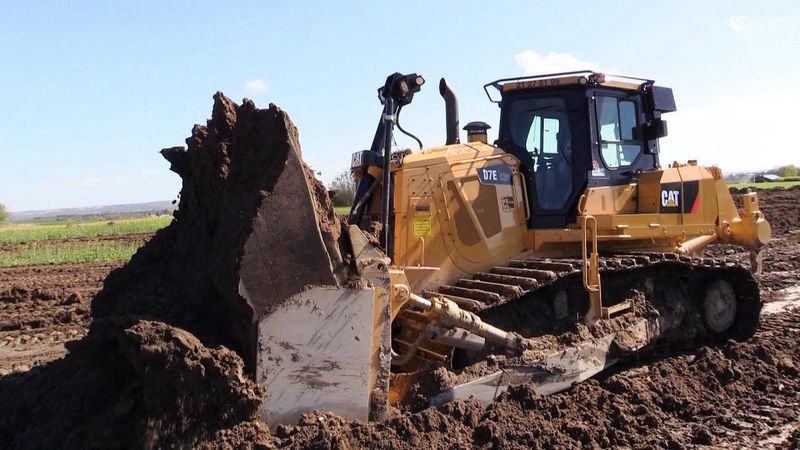

Caterpillar D7E LGP Hybrid
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 18.33 ft in (5585 mm) |
| Width Over Tracks | 11.24 ft in (3423 mm) |
| Height To Top Of Cab | 11.13 ft in (3392 mm) |
| Length Of Track On Ground | 11.32 ft in (3450 mm) |
| Ground Clearance | 1.55 ft in (472 mm) |
| Length W/O Blade | 15.12 ft in (4608 mm) |
Undercarriage
| Track Gauge | 7.5 ft in (2286 mm) |
| Standard Shoe Size | 36.03 in (915 mm) |
| Number Of Shoes Per Side | 44 |
| Ground Pressure | 6.3 psi (43.44 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Contact Area | 9792 in2 (6.32 m2) |
| Number Of Track Rollers Per Side | 8 |
| Track Pitch | 8.51 in (216 mm) |
Years Of Manufacture
| Approximate First Year Of Manufacture | 2009 A.D. (2009 A.D.) |
Engine
| Engine Make | 2236 |
| Engine Model | C9.3 Acert |
| Gross Power | 252 hp (188 kw) |
| Net Power | 235 hp (175.3 kw) |
| Power Measured @ | 1700 rpm |
| Displacement | 567.6 cu in (9.3 L) |
Operational
| Operating Weight | 62115 lb (28174.9 kg) |
| Fuel Capacity | 108.1 gal (409 L) |
| Cooling System Fluid Capacity | 23 gal (87 L) |
| Engine Oil Capacity | 8 gal (30 L) |
| Hydraulic Fluid Capacity | 20.1 gal (76 L) |
| Powertrain Fluid Capacity | 15.9 gal (60 L) |
| Final Drives Fluid Capacity | 11.1 gal (42 L) |
Transmission
| Transmission Type | Electric |
Hydraulic System
| Relief Valve Pressure | 4000 psi (27579.1 kPa) |
| Pump Flow Capacity | 82.5 gal/min (312 L/min) |
Standard Blade
| Width | 15 ft in (4545 mm) |
| Height | 53 in (1346.2 mm) |
| Capacity | 7.7 yd3 (5.9 m3) |
| Cutting Depth | 28 in (711 mm) |
