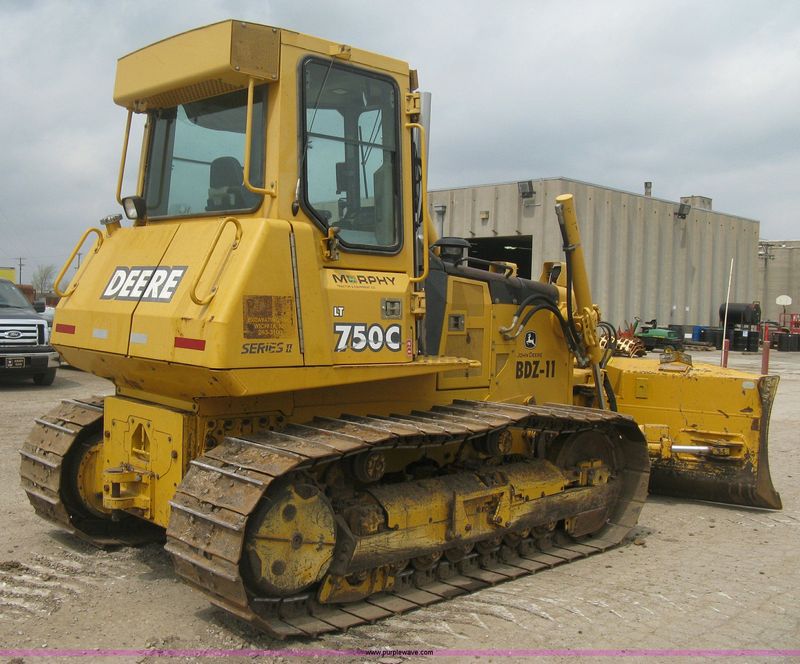

John Deere 750C LT
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 16.26 ft in (4955 mm) |
| Width Over Tracks | 8 ft in (2438 mm) |
| Height To Top Of Cab | 10.06 ft in (3065 mm) |
| Length Of Track On Ground | 8.51 ft in (2591 mm) |
| Ground Clearance | 1.22 ft in (371 mm) |
Undercarriage
| Track Gauge | 6.17 ft in (1880 mm) |
| Standard Shoe Size | 22 in (560 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 7.5 psi (51.7 kPa) |
| Number Of Shoes Per Side | 40 |
| Ground Contact Area | 4488 in2 (2.9 m2) |
| Track Pitch | 7.5 in (190 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Gross Power | 148 hp (110.4 kw) |
| Net Power | 140 hp (104.4 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 420 lb ft (569.5 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharger |
Operational
| Operating Weight | 33736 lb (15335 kg) |
| Fuel Capacity | 74 gal (280 L) |
| Cooling System Fluid Capacity | 7 gal (26.5 L) |
| Engine Oil Capacity | 5.1 gal (19 L) |
| Hydraulic Fluid Capacity | 18 gal (68 L) |
| Powertrain Fluid Capacity | 22 gal (83.3 L) |
| Final Drives Fluid Capacity | 6.3 gal (23.6 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
Transmission
| Transmission Type | Hydrostatic drive |
| Max Speed - Forward | 6.8 mph (11 km/h) |
| Max Speed - Reverse | 6.8 mph (11 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 2000 psi (13790 kPa) |
| Pump Flow Capacity | 38 gal/min (144 L/min) |
Standard Blade
| Width | 10.8 ft in (3283 mm) |
| Height | 47 in (1193 mm) |
| Capacity | 4.6 yd3 (3.6 m3) |
| Blade Angle (Both Directions) | 24 degrees |
| Cutting Depth | 33.4 in (848.4 mm) |
