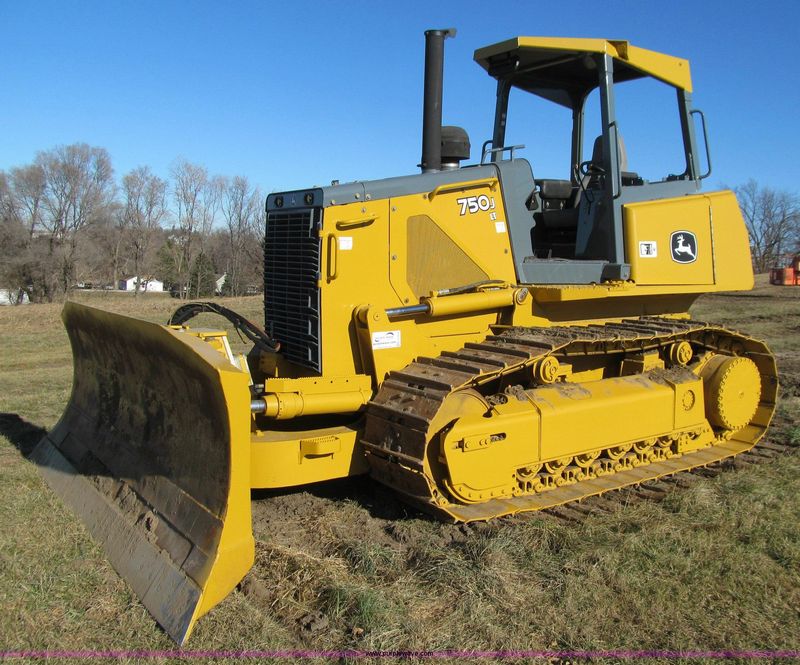

John Deere 750J LT
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17.33 ft in (5300 mm) |
| Width Over Tracks | 8 ft in (2438 mm) |
| Height To Top Of Cab | 10.17 ft in (3095 mm) |
| Length Of Track On Ground | 10.09 ft in (3075 mm) |
| Ground Clearance | 1.18 ft in (356.9 mm) |
Undercarriage
| Track Gauge | 6.17 ft in (1880 mm) |
| Standard Shoe Size | 22 in (560 mm) |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 6.45 psi (44.4 kPa) |
| Number Of Shoes Per Side | 45 |
| Ground Contact Area | 5324 in2 (3.44 m2) |
| Track Pitch | 7.5 in (190 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Gross Power | 157 hp (117.1 kw) |
| Net Power | 145 hp (108 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 500 lb ft (678 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged w/ after-cooler |
Operational
| Operating Weight | 34390 lb (15599 kg) |
| Fuel Capacity | 98 gal (371 L) |
| Cooling System Fluid Capacity | 5.7 gal (21.5 L) |
| Engine Oil Capacity | 7 gal (26.5 L) |
| Hydraulic Fluid Capacity | 27.9 gal (105.6 L) |
| Powertrain Fluid Capacity | 27.9 gal (105.6 L) |
| Final Drives Fluid Capacity | 4 gal (15.1 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 6.3 mph (10.1 km/h) |
| Max Speed - Reverse | 6.3 mph (10.2 km/h) |
Hydraulic System
| Pump Type | Piston |
| Relief Valve Pressure | 3625 psi (24980 kPa) |
| Pump Flow Capacity | 38 gal/min (144 L/min) |
Standard Blade
| Width | 10.9 ft in (3296 mm) |
| Height | 47.1 in (1194 mm) |
| Capacity | 4.3 yd3 (3.3 m3) |
| Blade Angle (Both Directions) | 23.5 degrees |
| Cutting Depth | 25.6 in (650 mm) |
