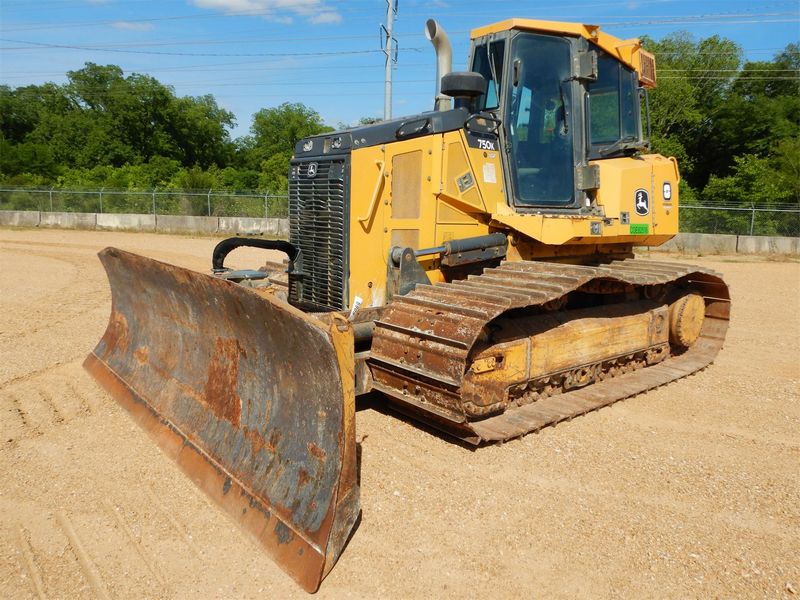

John Deere 750K
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Height To Top Of Cab | 10.27 ft in (3128 mm) |
| Length Of Track On Ground | 8.51 ft in (2591 mm) |
| Ground Clearance | 1.17 ft in (356 mm) |
Undercarriage
| Track Gauge | 6.17 ft in (1880 mm) |
| Standard Shoe Size | 7.52 in (191 mm) |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 7 |
| Ground Contact Area | 4488 in2 (2.9 m2) |
Engine
| Engine Make | John Deere |
| Engine Model | PowerTech PVS 6068 |
| Net Power | 165 hp (123.1 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 414 cu in (6.8 L) |
Operational
| Operating Weight | 34566.3 lb (15679 kg) |
| Fuel Capacity | 97.3 gal (368 L) |
| Hydraulic Fluid Capacity | 29.6 gal (112 L) |
Transmission
| Max Speed - Forward | 6 mph (9.7 km/h) |
| Max Speed - Reverse | 6 mph (9.7 km/h) |
Hydraulic System
| Pump Type | Variable Displacement Piston |
| Relief Valve Pressure | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 36.5 gal/min (138 L/min) |
Standard Blade
| Width | 10.7 ft in (3251 mm) |
| Cutting Depth | 22.7 in (575 mm) |
