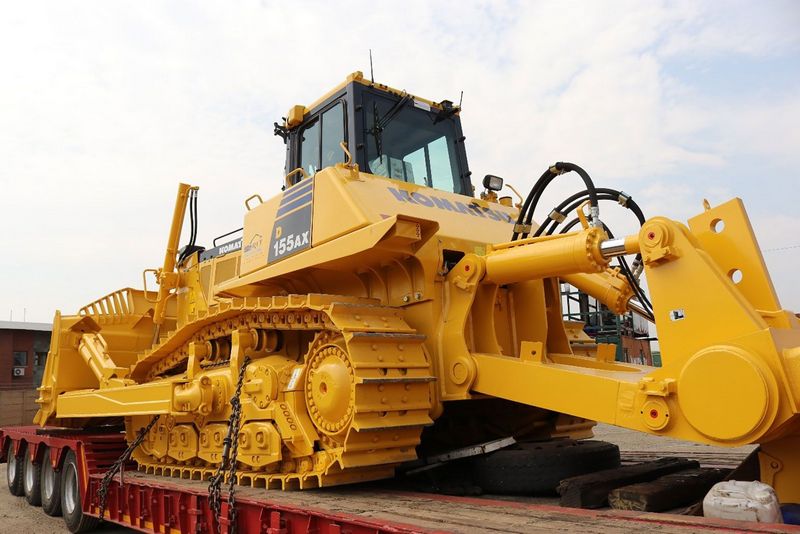

Komatsu D155AX-6
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Height To Top Of Cab | 11.17 ft in (3395 mm) |
| Length Of Track On Ground | 10.75 ft in (3275 mm) |
| Ground Clearance | 1.67 ft in (500 mm) |
| Track Gauge | 7.03 ft in (2140 mm) |
| Overall Length | 26.99 ft in (8225 mm) |
Undercarriage
| Standard Shoe Size | 22 in (560 mm) |
| Number Of Shoes Per Side | 42 |
| Ground Pressure | 11.9 psi (_ -) |
| Ground Contact Area | 5685 in2 (3.67 m2) |
| Number Of Track Rollers Per Side | 7 |
| Link Type | Standard |
Engine
| Number Of Cylinders | 6 |
| Engine Model | SAA6D140E-5 |
| Gross Power | 360 hp (268 kw) |
| Net Power | 354 hp (264 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 930 cu in (15.3 L) |
| Aspiration | turbocharged, air-to-air aftercooled, cooled EGR |
Driveline
| Maximum Speeds Fwd | 7.3 mph (11.6 km/h) |
| Maximum Speeds Rev | 8.7 mph (14 km/h) |
| Number Of Speeds - Forward | 3 |
| Number Of Speeds - Reverse | 3 |
| Steering | Hydrostatic Steering System |
| Transmission Type | PS |
Operational
| Blade Capacity | 12.3 yd3 (9.4 m3) |
| Blade Type | SIGMA |
| Blade Length | 159.9 in (4060 mm) |
| Blade Height | 72.9 in (1850 mm) |
| Blade Cut Depth | 24.3 in (617 mm) |
| Operating Weight | 87100 lb (39500 kg) |
| Fuel Capacity | 165 gal (625 L) |
| Cooling System Fluid Capacity | 21.7 gal (82 L) |
| Engine Oil Capacity | 9.8 gal (37 L) |
| Final Drives Fluid Capacity | 8.2 gal (31 L) |
Transmission
| Transmission Type | Komatsu TORQFLOW transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.2 mph (11.6 km/h) |
| Max Speed - Reverse | 8.7 mph (14 km/h) |
Hydraulic System
| Hydraulic System Type | Closed-center Load Sensing System (CLSS) |
| Pump Type | double-acting, piston |
Standard Blade
| Width | 13.4 ft in (4060 mm) |
| Height | 6.1 in (1850 mm) |
