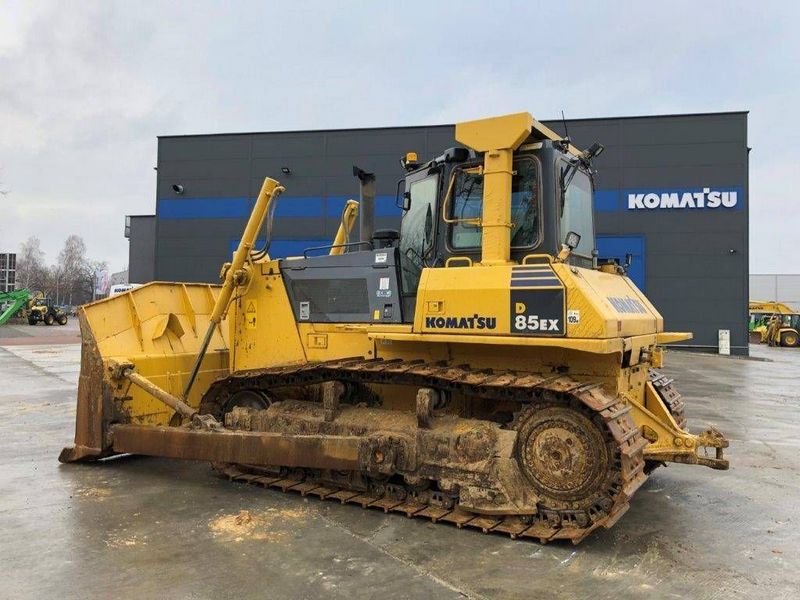

Komatsu D85EX-15E0
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Ground Clearance | 17.72 in (450 mm) |
| Track Gauge | 6.57 ft in (2000 mm) |
| Height - Top Of Cab | 10.91 ft in (3324 mm) |
| Overall Length | 23.81 ft in (7255 mm) |
| Track Length On Ground | 10.01 ft in (3050 mm) |
Undercarriage
| Length Of Track On Ground | 10.01 ft in (3050 mm) |
| Track Gauge | 6.57 ft in (2000 mm) |
| Shoe Size | 24.02 in (610 mm) |
| Shoe Width (Standard) | 22.05 in (560 mm) |
| Type Of Shoes(Standard) | Single grouser |
| Ground Contact Area | 5295 in2 (3.42 m2) |
| Ground Pressure | 10.7 psi (73.78 kPa) |
| Grouser Height | 2.84 in (72 mm) |
| Link Type | Standard |
| Number Of Shoes (Each Side) | 41 |
| Number Of Track Rollers(Each Side) | 7 |
Steering System
| Minimum Turning Radius | 6.6 ft in (2 m) |
Engine
| Horsepower, Gross-Sae J1995 | 266.9 hp (199 kw) |
| Horsepower, Net-Iso 9249 | 264.2 hp (197 kw) |
| Horsepower, Net-Sae J1349 | 264.2 hp (197 kw) |
| Fan Drive Method | Hydraulic |
| Lubrication Method | Gear pump |
| Filter | Full-flow |
| Number Of Cylinders | 6 |
| Radiator Cooling Fan | 240.1 hp (179 kw) |
| Engine Model | SAA6D125E-5 |
| Power Measured @ | 1900 rpm |
| Displacement | 673.8 cu in (11.1 L) |
| Aspiration | Turbocharged |
| Bore | 5 in (125 mm) |
| Stroke | 6 in (150 mm) |
Driveline
| Maximum Speeds Fwd | 6.3 mph (10.1 km/h) |
| Maximum Speeds Rev | 8.1 mph (13 km/h) |
| Number Of Speeds - Forward | 3 |
| Number Of Speeds - Reverse | 3 |
Capacities
| Torque Converter, Transmission, Bevel Gear, And Steering System | 3661.5 cu in (60 L) |
| Fuel Tank | 129.5 gal (490 L) |
| Final Drive | 6.9 gal (26 L) |
| Engine Oil | 10.1 gal (38 L) |
| Coolant | 15.4 gal (58 L) |
Operational
| Blade Capacity | 9.2 yd3 (7 m3) |
| Blade Type | Semi-U |
| Blade Length | 143.2 in (3635 mm) |
| Blade Height | 62.3 in (1580 mm) |
| Blade Cut Depth | 21.3 in (540 mm) |
| Ripper Type | Adjust |
| Ripper Depth | 25.8 in (653 mm) |
Transmission
| Transmission Type | PS |
Weights
| Operating Weight | 61949.9 lb (28100 kg) |
| Ripper Weight | 5511.6 lb (2500 kg) |
| Blade Weight | 7881.6 lb (3575 kg) |
Hydraulic System
| Hydraulic System Type | Closed-center Load Sensing System |
| Relief Valve Pressure | 3270 psi (22545.9 kPa) |
