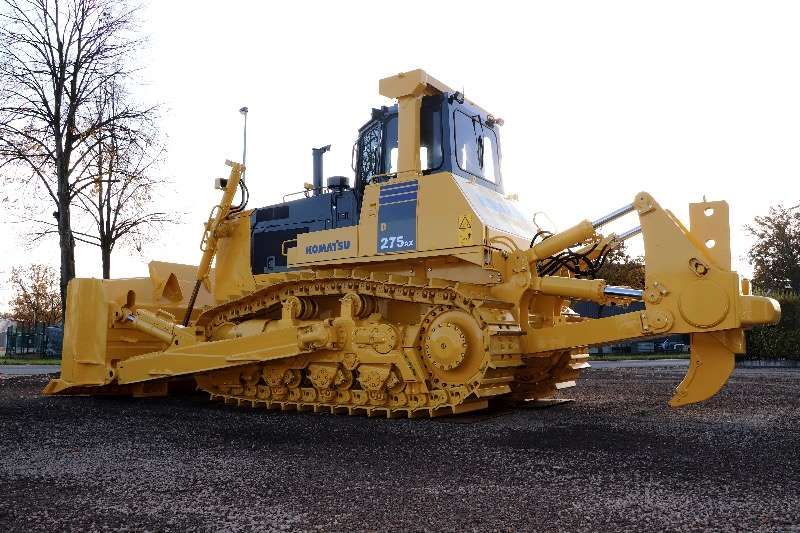

Komatsu D275AX-5SL
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 9.42 ft in (2870 mm) |
| Height To Top Of Cab | 14.17 ft in (4313 mm) |
| Length Of Track On Ground | 11.42 ft in (3480 mm) |
| Ground Clearance | 1.67 ft in (507 mm) |
| Length W/O Blade | 21.08 ft in (6429 mm) |
Undercarriage
| Standard Shoe Size | 24 in (610 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Contact Area | 6580 in2 (4.25 m2) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D140E-5 |
| Net Power | 410 hp (306 kw) |
| Displacement | 930 cu in (15.3 L) |
Operational
| Operating Weight | 116528 lb (52856 kg) |
Standard Blade
| Width | 15.2 ft in (4615 mm) |
| Height | 9.5 in (2883 mm) |
