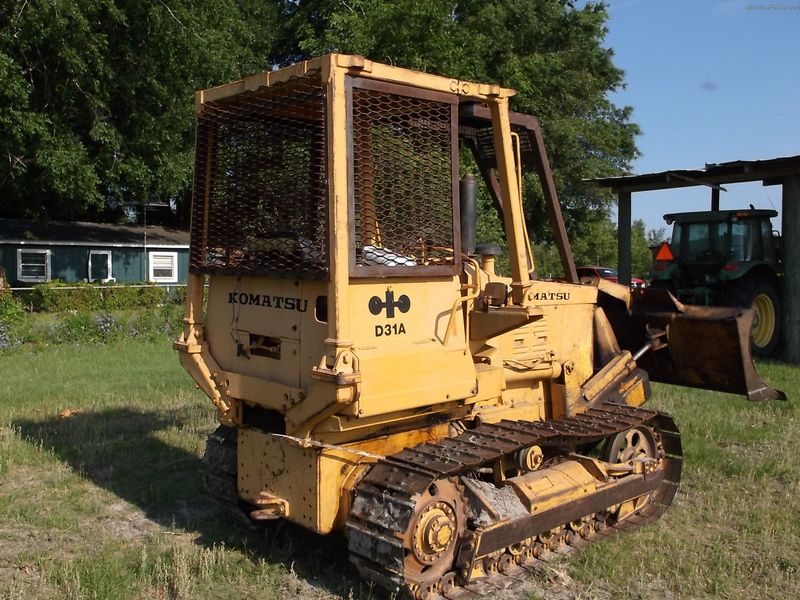

Komatsu D31A-20E
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 12.6 ft in (3840 mm) |
| Width Over Tracks | 5.88 ft in (1790 mm) |
| Height To Top Of Cab | 8.91 ft in (2715 mm) |
| Length Of Track On Ground | 6.17 ft in (1880 mm) |
| Ground Clearance | 1.04 ft in (315 mm) |
| Length W/O Blade | 9.55 ft in (2910 mm) |
Undercarriage
| Track Gauge | 4.76 ft in (1450 mm) |
| Standard Shoe Size | 13 in (330 mm) |
| Number Of Track Rollers Per Side | 5 |
| Track Pitch | 6.07 in (154 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | S4D102E-1-A |
| Gross Power | 71 hp (53 kw) |
| Power Measured @ | 2350 rpm |
| Displacement | 239.3 cu in (4 L) |
Operational
| Operating Weight | 13801 lb (6260 kg) |
Transmission
| Transmission Type | HS |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Standard Blade
| Width | 8 ft in (2415 mm) |
| Height | 33.1 in (840 mm) |
