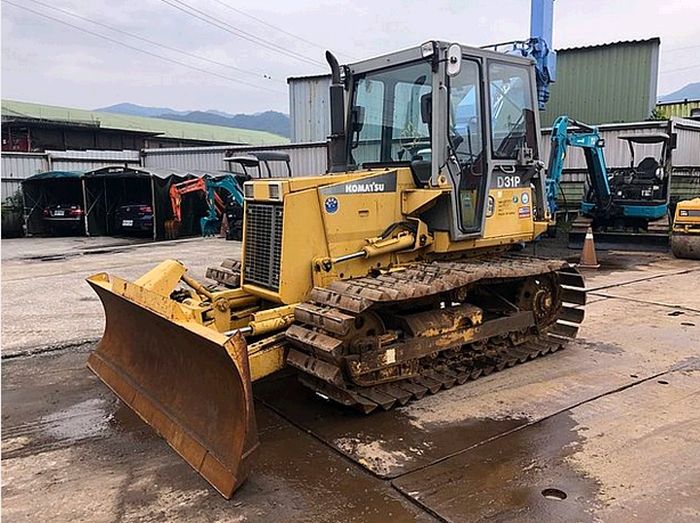

Komatsu D31P-20E
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 12.62 ft in (3845 mm) |
| Width Over Tracks | 6.73 ft in (2050 mm) |
| Height To Top Of Cab | 8.98 ft in (2735 mm) |
| Length Of Track On Ground | 7.17 ft in (2185 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Length W/O Blade | 9.95 ft in (3030 mm) |
Undercarriage
| Track Gauge | 4.76 ft in (1450 mm) |
| Standard Shoe Size | 23.63 in (600 mm) |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 6.07 in (154 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | S4D102E-1-A |
| Gross Power | 71 hp (53 kw) |
| Power Measured @ | 2350 rpm |
| Displacement | 239.3 cu in (4 L) |
Operational
| Operating Weight | 15079.7 lb (6840 kg) |
Transmission
| Transmission Type | HS |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Standard Blade
| Width | 8 ft in (2435 mm) |
| Height | 31.2 in (790 mm) |
