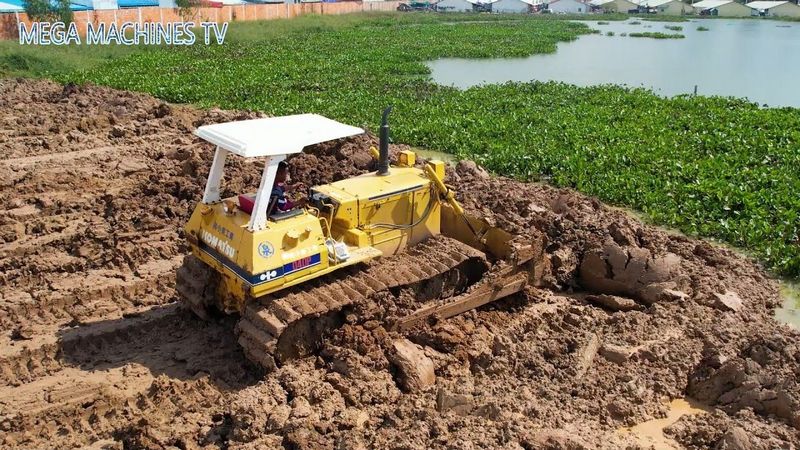

Komatsu D40P-1
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 15.31 ft in (4665 mm) |
| Width Over Tracks | 8.14 ft in (2480 mm) |
| Height To Top Of Cab | 8.57 ft in (2610 mm) |
| Length Of Track On Ground | 8.5 ft in (2590 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Length W/O Blade | 11.78 ft in (3590 mm) |
Undercarriage
| Track Gauge | 5.78 ft in (1760 mm) |
| Standard Shoe Size | 28.35 in (720 mm) |
| Number Of Shoes Per Side | 720 |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Pressure | 3.41 psi (23.52 kPa) |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 6.89 in (175 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | S4D105-3 |
| Gross Power | 80 hp (59.7 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 264.3 cu in (4.4 L) |
Operational
| Operating Weight | 22707.7 lb (10300 kg) |
Transmission
| Transmission Type | DD |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
Standard Blade
| Width | 9.9 ft in (3000 mm) |
| Height | 35.5 in (900 mm) |
| Capacity | 3.2 yd3 (2.4 m3) |
| Cutting Depth | 15 in (380 mm) |
