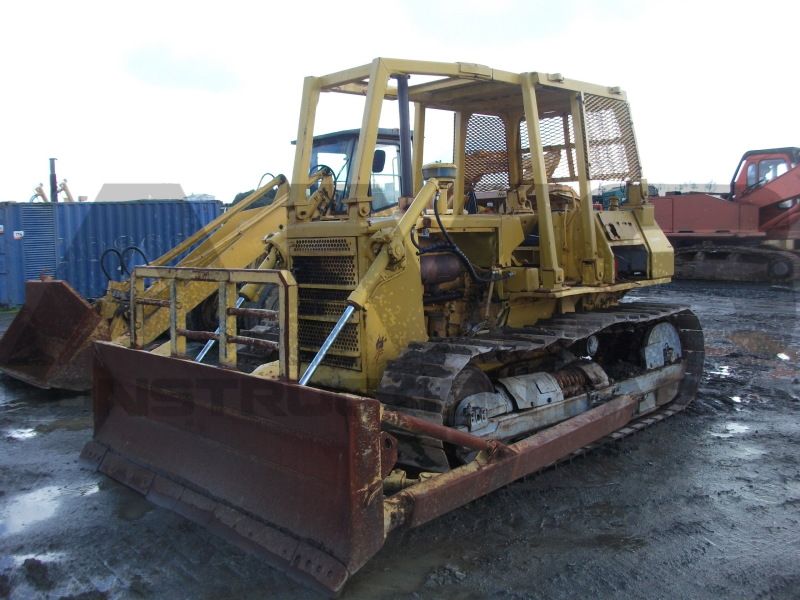

Komatsu D40P-3
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 15.08 ft in (4595 mm) |
| Width Over Tracks | 8.14 ft in (2480 mm) |
| Height To Top Of Cab | 9.24 ft in (2815 mm) |
| Length Of Track On Ground | 8.5 ft in (2590 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Length W/O Blade | 11.72 ft in (3570 mm) |
Undercarriage
| Track Gauge | 5.78 ft in (1760 mm) |
| Standard Shoe Size | 28.35 in (720 mm) |
| Number Of Shoes Per Side | 43 |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Pressure | 3.41 psi (23.52 kPa) |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 6.89 in (175 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | 6D105-1 |
| Gross Power | 93 hp (69.4 kw) |
| Power Measured @ | 2350 rpm |
| Displacement | 396.1 cu in (6.5 L) |
Operational
| Operating Weight | 23413.1 lb (10620 kg) |
Transmission
| Transmission Type | DD |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 4 |
Standard Blade
| Width | 10 ft in (3025 mm) |
| Height | 35.1 in (890 mm) |
| Capacity | 3.2 yd3 (2.4 m3) |
| Cutting Depth | 13.4 in (340 mm) |
