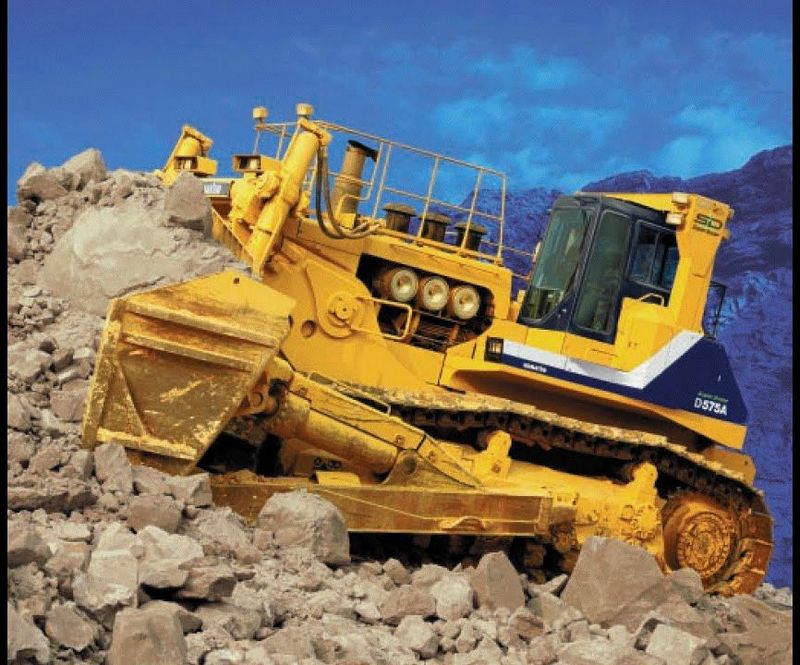

Komatsu D575A-2
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 39.39 ft in (12005 mm) |
| Width Over Tracks | 13.72 ft in (4180 mm) |
| Height To Top Of Cab | 16.02 ft in (4880 mm) |
| Length Of Track On Ground | 14.87 ft in (4530 mm) |
| Ground Clearance | 2.45 ft in (745 mm) |
| Length W/O Blade | 23.86 ft in (7270 mm) |
Undercarriage
| Track Gauge | 10.57 ft in (3220 mm) |
| Standard Shoe Size | 29.93 in (760 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 22.91 psi (157.9 kPa) |
| Ground Contact Area | 10672.71 in2 (6.89 m2) |
| Number Of Shoes Per Side | 43 |
| Number Of Track Rollers Per Side | 6 |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2238 |
| Engine Model | SA12V170 |
| Gross Power | 1065 hp (794.2 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 2825.4 cu in (46.3 L) |
| Aspiration | Turbocharged and emission certified diesel |
Operational
| Operating Weight | 284837.3 lb (129200 kg) |
| Fuel Capacity | 554.8 gal (2100 L) |
| Cooling System Fluid Capacity | 84.6 gal (320 L) |
| Engine Oil Capacity | 34.1 gal (129 L) |
| Hydraulic Fluid Capacity | 79.3 gal (300 L) |
| Powertrain Fluid Capacity | 91.2 gal (345 L) |
| Final Drives Fluid Capacity | 18.5 gal (70 L) |
Transmission
| Transmission Type | TF |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.5 mph (12 km/h) |
| Max Speed - Reverse | 8.6 mph (13.8 km/h) |
Hydraulic System
| Pump Type | gear type |
| Relief Valve Pressure | 2987.8 psi (20600 kPa) |
| Pump Flow Capacity | 67.4 gal/min (255 L/min) |
Standard Blade
| Width | 19.3 ft in (5880 mm) |
| Height | 107.9 in (2740 mm) |
