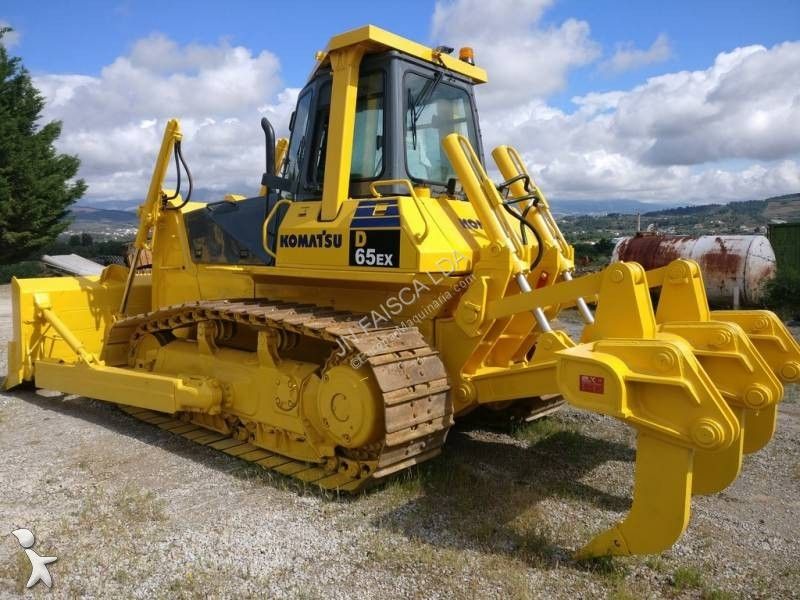

Komatsu D65EXL-12
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17.85 ft in (5440 mm) |
| Height To Top Of Cab | 10.39 ft in (3165 mm) |
| Length Of Track On Ground | 10.78 ft in (3285 mm) |
Undercarriage
| Track Gauge | 6.17 ft in (1880 mm) |
| Standard Shoe Size | 20.08 in (510 mm) |
| Track Pitch | 2.56 in (65 mm) |
| Ground Contact Area | 6211.95 in2 (4.01 m2) |
| Ground Pressure | 6.97 psi (48.06 kPa) |
| Number Of Shoes Per Side | 45 |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D125E-2 |
| Net Power | 180 hp (134.3 kw) |
| Max Torque | 657.2 lb ft (891 Nm) |
| Displacement | 673.8 cu in (11.1 L) |
| Aspiration | Turbocharged engine |
Operational
| Operating Weight | 44158.6 lb (20030 kg) |
| Fuel Capacity | 107 gal (406 L) |
| Cooling System Fluid Capacity | 13.7 gal (52 L) |
| Engine Oil Capacity | 10 gal (38 L) |
| Hydraulic Fluid Capacity | 14.6 gal (55 L) |
| Final Drives Fluid Capacity | 6.3 gal (24 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
Transmission
| Transmission Type | Torque converter ,Planetary Gear |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 3.9 mph (10.6 km/h) |
| Max Speed - Reverse | 5 mph (13.4 km/h) |
Hydraulic System
| Pump Type | Double acting Piston |
| Relief Valve Pressure | 2987.8 psi (20600 kPa) |
Standard Blade
| Width | 11.4 ft in (3460 mm) |
| Height | 56.2 in (1425 mm) |
| Capacity | 7.4 yd3 (5.7 m3) |
| Cutting Depth | 17.4 in (440 mm) |
