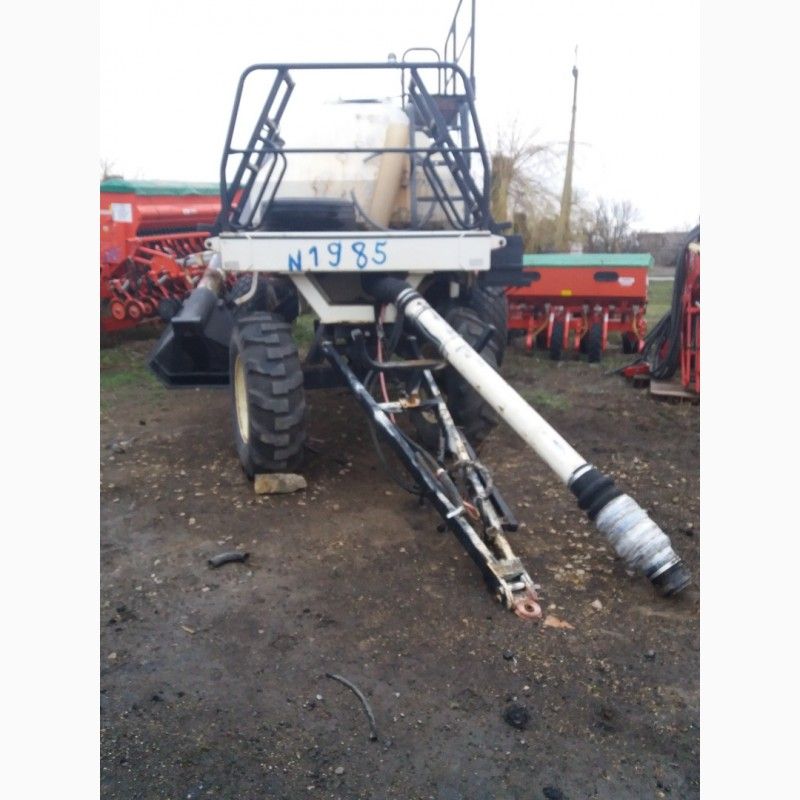

Bourgault 8810-35
Contents:
| Transport Width | 19 ft in (5791.2 mm) |
| Transport Height | 16.25 ft in (4953 mm) |
| Frame Depth | 104.5 in (2654.3 mm) |
| Main Frame Tires | 11x15FI |
| Under Frame Clearance | 27 in (685.8 mm) |
| Wing Tires | 11x15FI |
| Min Working Width | 34.7 ft in (10.6 m) |
| Max Working Width | 40 ft in (12.2 m) |
| Main Frame Width | 14.2 ft in (4.4 m) |
| Inner Wing Width | 10.5 ft in (3.3 m) |
| Spacing Option 1 | 8 in (203.2 mm) |
| Spacing Option 2 | 10 in (254 mm) |
| Spacing Option 3 | 12 in (304.8 mm) |
| Operational Weight | 12150 lb (5511.2 kg) |
| Number Of Sections | 3 |
| Number Of Rows | 5 |
| Row/Rank Spacing | 25 in (635 mm) |
