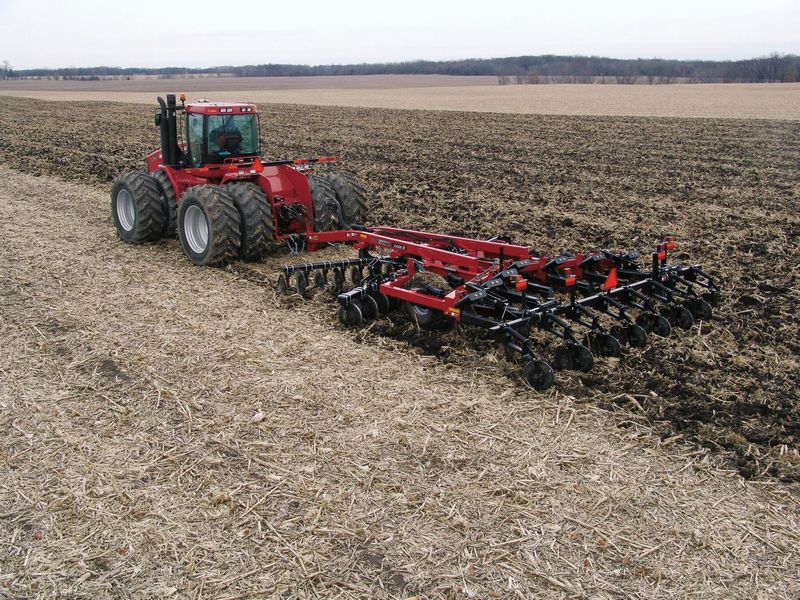

Case IH Ecolo-Tiger 730C
Contents:
Dimensions
| Transport Width | 16.43 ft in (5004.82 mm) |
| Main Frame Tires | 16.6x16.1 FI |
| Max Weight | 13600 lb (6168.86 kg) |
| Working Width Spacing #1 Min | 17.5 ft in (5334 mm) |
Disc System
| Spacing #1 | 15 in (381 mm) |
| Blade Diameter | 24 in (609.6 mm) |
| Blade Thickness | 0.3 in (6.4 mm) |
| Depth Control | independent hydraulic |
| Max Operating Depth | 4 in (101.6 mm) |
Shanks
| Number Of Main Shanks | 7 |
| Shank Spacing | 30 in (762 mm) |
| Shank Trip Force | 4800 lb (2177.3 kg) |
