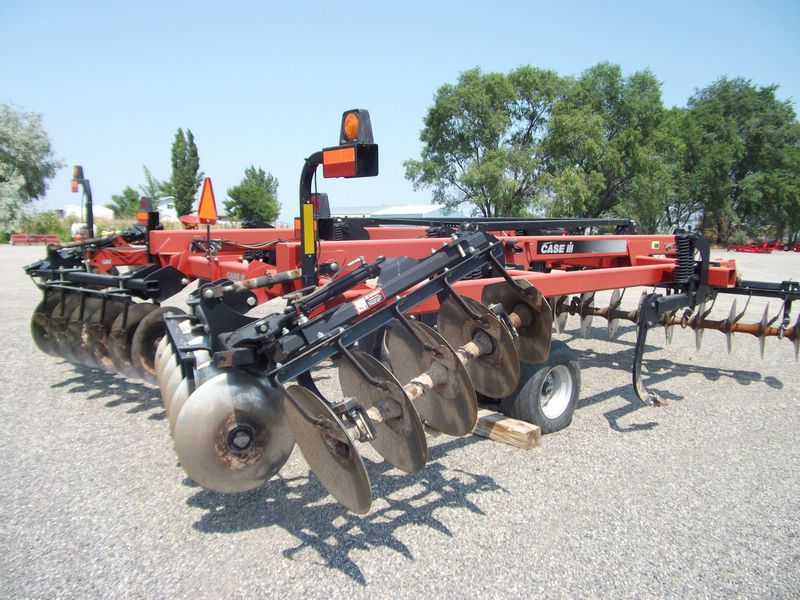

Case IH MRX 690 7-Shank
Contents:
Dimensions
| Overall Length | 31.33 in (9549.39 mm) |
| Transport Width | 21.67 ft in (6605.02 mm) |
| Main Frame Tires | 12.5Lx15 8 ply |
| Max Weight | 11960 lb (5424.97 kg) |
| Working Width Spacing #1 Min | 17.5 ft in (5334 mm) |
Disc System
| Spacing #1 | 12 in (304.8 mm) |
| Blade Diameter | 24 in (609.6 mm) |
| Depth Control | mechanical |
| Max Operating Depth | 5 in (127 mm) |
Shanks
| Number Of Main Shanks | 7 |
| Shank Spacing | 30 in (762 mm) |
| Shank Working Depth | 14 in (355.6 mm) |
| Shank Trip Force | 1800 lb (816.5 kg) |
