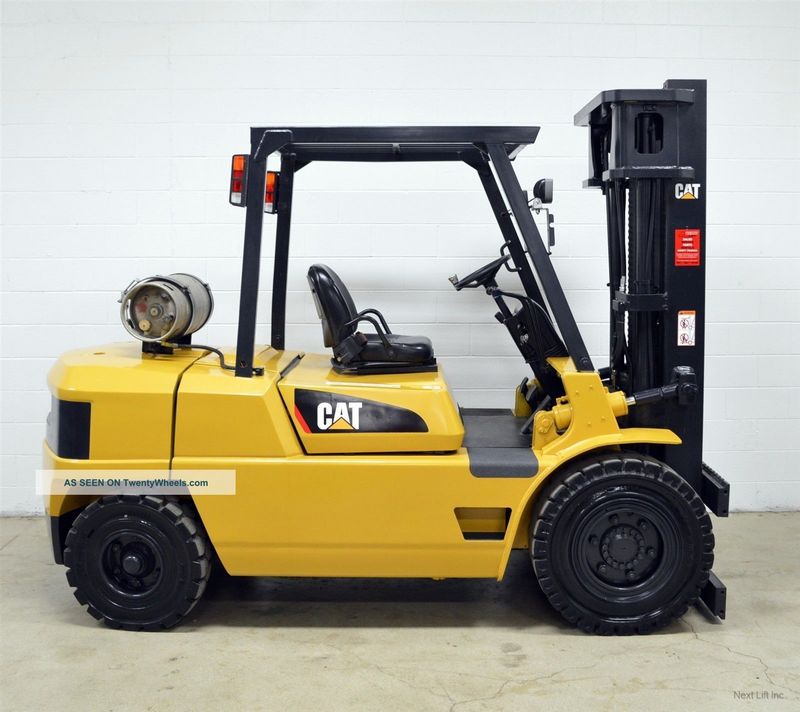

Caterpillar GP50K
Browse All Caterpillar or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 10.85 ft in (3305 mm) |
| Overall Width | 4.79 ft in (1460 mm) |
| Overall Height - Mast Lowered | 7.88 ft in (2400 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Ground Clearance | 5.91 in (150 mm) |
| Height To Top Of Overhead Guard | 7.39 ft in (2250 mm) |
| Max Fork Height | 11.03 ft in (3360 mm) |
| Turning Radius | 9.73 ft in (2965 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 46.62 in (1184 mm) |
| Lower Speed | 5.35 ft/min (1.63 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 11023.12 lb (5000 kg) |
| Lift Speed | 4.76 ft/min (1.45 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | TB45 |
| Power | 97 hp (72.4 kw) |
| Torque | 207 lb ft (280.7 Nm) |
| Power Measured @ | 2450 rpm |
| Displacement | 275 cu in (4.6 L) |
| Torque Measured @ | 1200 rpm |
| Fuel Type | gas |
Operational
| Operating Weight | 15543 lb (7050.2 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 14.6 mph (23.5 km/h) |
