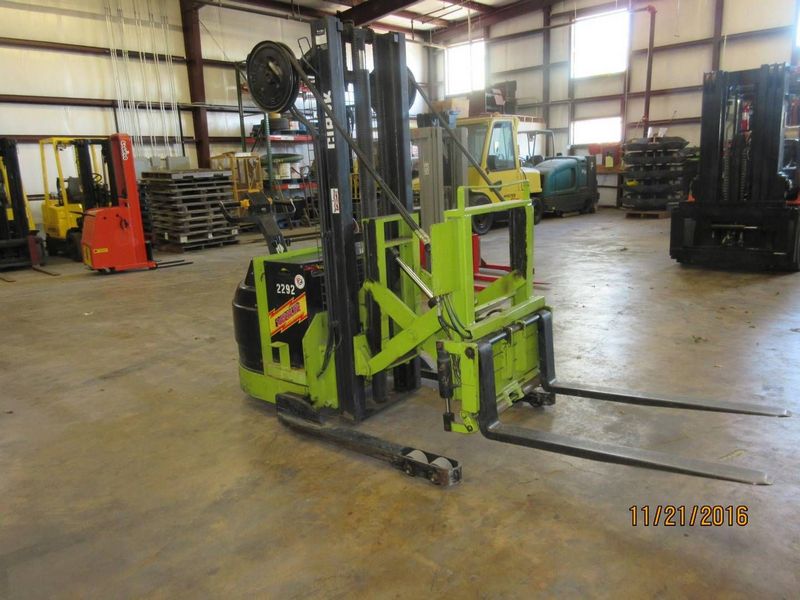

Clark Michigan CSP15
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 4.21 ft in (1283 mm) |
| Overall Height - Mast Lowered | 6.92 ft in (2108 mm) |
| Wheelbase | 4.93 ft in (1500 mm) |
| Ground Clearance | 4.02 in (102 mm) |
| Height To Top Of Overhead Guard | 3.11 ft in (945 mm) |
| Max Fork Height | 9.84 ft in (2997.19 mm) |
| Right Angle Stack | 7.75 ft in (2362 mm) |
| Turning Radius | 5.65 ft in (1720 mm) |
Mast
| Mast Tip Forward | 2 degrees |
| Mast Tip Rear | 6 degrees |
| Max Fork Spread | 29.53 in (750 mm) |
| Load Center | 24 in (609.6 mm) |
| Lower Speed | 31 ft/min (9.45 m/min) |
| Load Capacity | 3000 lb (1360.78 kg) |
| Number Of Mast Sections | 3 |
| Lift Speed | 25 ft/min (7.62 m/min) |
Engine
| Fuel Type | Electric 24V |
Operational
| Operating Weight | 3135 lb (1422.1 kg) |
| Tire Type | Poly |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 1 |
| Max Speed | 3.5 mph (5.6 km/h) |
