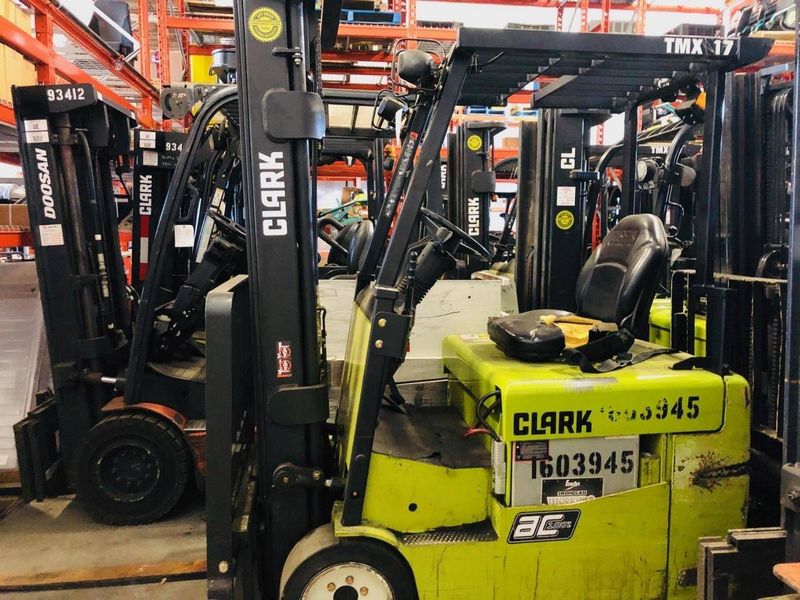

Clark Michigan TMX17
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 6.35 ft in (1933 mm) |
| Overall Width | 3.36 ft in (1022 mm) |
| Overall Height - Mast Lowered | 6.92 ft in (2108 mm) |
| Wheelbase | 4.4 ft in (1339 mm) |
| Ground Clearance | 3.27 in (83 mm) |
| Height To Top Of Overhead Guard | 6.92 ft in (2108 mm) |
| Max Fork Height | 13.03 ft in (3971 mm) |
| Right Angle Stack | 6.19 ft in (1885 mm) |
| Turning Radius | 4.99 ft in (1519 mm) |
Mast
| Mast Tip Forward | 3 degrees |
| Mast Tip Rear | 5 degrees |
| Number Of Mast Sections | 4 |
| Lower Speed | 77 ft/min (23.47 m/min) |
| Max Fork Spread | 35.99 in (914 mm) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 3858.09 lb (1750 kg) |
| Lift Speed | 65 ft/min (19.82 m/min) |
Engine
| Fuel Type | Electric Motor 36V |
Operational
| Operating Weight | 8304.9 lb (3767 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 9.4 mph (15 km/h) |
