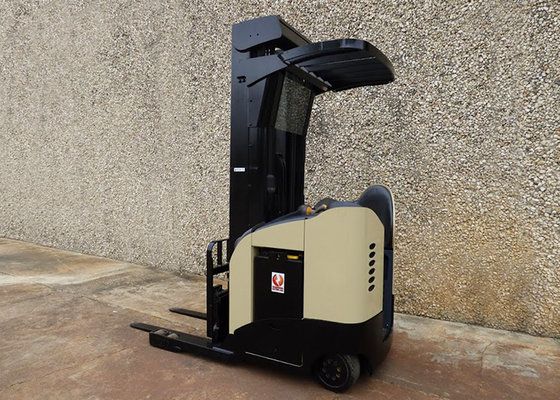

Crown RR 5285S
Contents:
Dimensions
| Length To Fork Face | 4.58 ft in (1394.71 mm) |
| Overall Width | 4 ft in (1219.2 mm) |
| Overall Height - Mast Lowered | 7.42 ft in (2260.62 mm) |
| Wheelbase | 4.97 ft in (1513.09 mm) |
| Ground Clearance | 2 in (50.8 mm) |
| Height To Top Of Overhead Guard | 7.42 ft in (2260.62 mm) |
| Max Fork Height | 16.5 ft in (5029.2 mm) |
Mast
| Mast Tip Forward | 3 degrees |
| Mast Tip Rear | 4 degrees |
| Load Center | 24 in (609.6 mm) |
| Max Fork Spread | 30 in (762 mm) |
| Load Capacity | 4500 lb (2041.17 kg) |
| Lift Speed | 86 ft/min (86 -) |
| Lower Speed | 90 ft/min (90 -) |
Engine
| Fuel Type | Electric 36V |
Operational
| Operating Weight | 8167 lb (3704.5 kg) |
| Tire Type | Poly |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.3 mph (13.4 km/h) |
