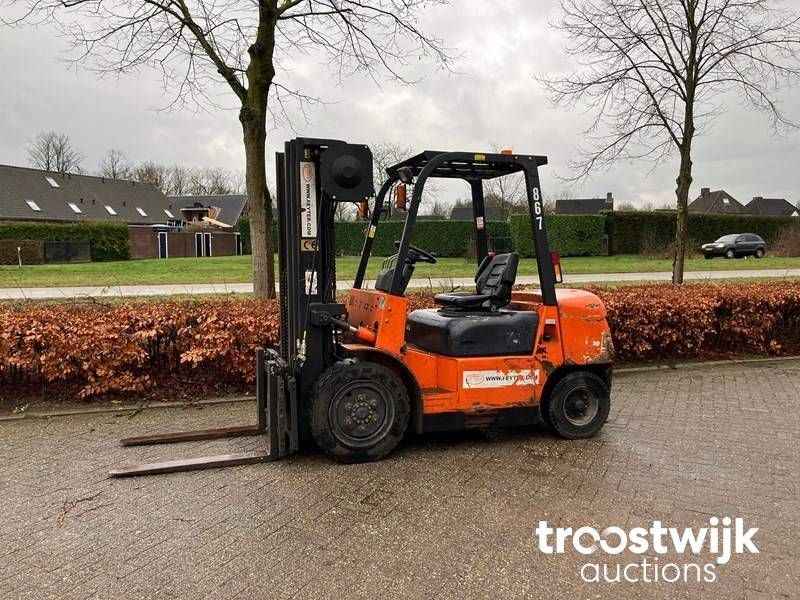

Dalian CPCD40AA
Contents:
Dimensions
| Length To Fork Face | 9.29 ft in (2830 mm) |
| Overall Width | 4.63 ft in (1410 mm) |
| Overall Height - Mast Lowered | 7.09 ft in (2160 mm) |
| Wheelbase | 6.24 ft in (1900 mm) |
| Ground Clearance | 5.04 in (128 mm) |
| Height To Top Of Overhead Guard | 6.89 ft in (2100 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Right Angle Stack | 7.19 ft in (2190 mm) |
| Turning Radius | 9.03 ft in (2750 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 8818.49 lb (4000 kg) |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 61.03 ft/min (18.61 m/min) |
Engine
| Engine Make | 2353 |
| Engine Model | XC 495BPG |
| Power | 56.4 hp (42 kw) |
| Torque | 128.4 lb ft (174 Nm) |
| Power Measured @ | 2650 rpm |
| Displacement | 181.3 cu in (3 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 11023.2 lb (5000 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (18 km/h) |
