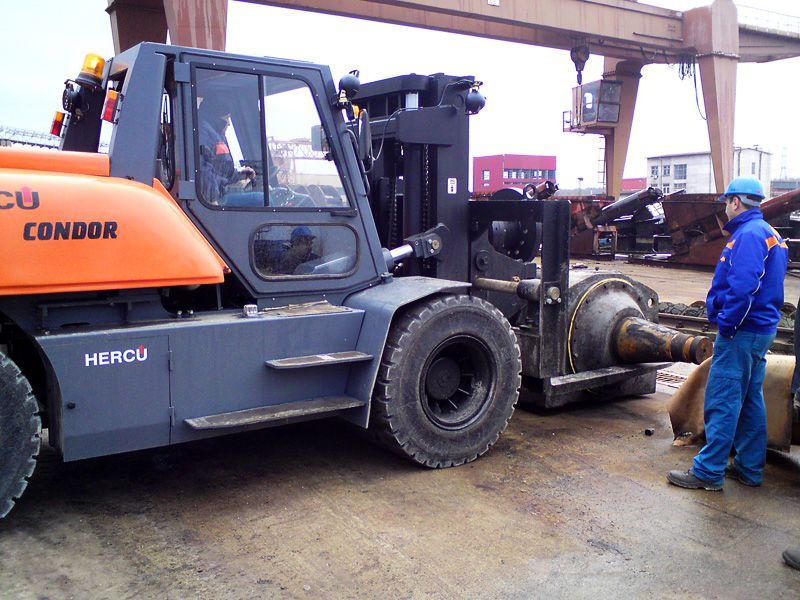

Hercu 50D
Contents:
Dimensions
| Length To Fork Face | 10.07 ft in (3068 mm) |
| Overall Width | 0.36 ft in (107 mm) |
| Overall Height - Mast Lowered | 7.68 ft in (2340 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Ground Clearance | 5.12 in (130 mm) |
| Height To Top Of Overhead Guard | 7.29 ft in (2220 mm) |
| Max Fork Height | 15.75 ft in (4800 mm) |
| Turning Radius | 11.19 ft in (3410 mm) |
Mast
| Mast Tip Forward | 3 degrees |
| Mast Tip Rear | 6 degrees |
| Number Of Mast Sections | 3 |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 11023.12 lb (5000 kg) |
| Lift Speed | 70.87 ft/min (21.6 m/min) |
Engine
| Engine Make | 2388 |
| Engine Model | 8045E00 |
| Power | 79.2 hp (59 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 244.1 cu in (4 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 14462.4 lb (6560 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.9 mph (19 km/h) |
