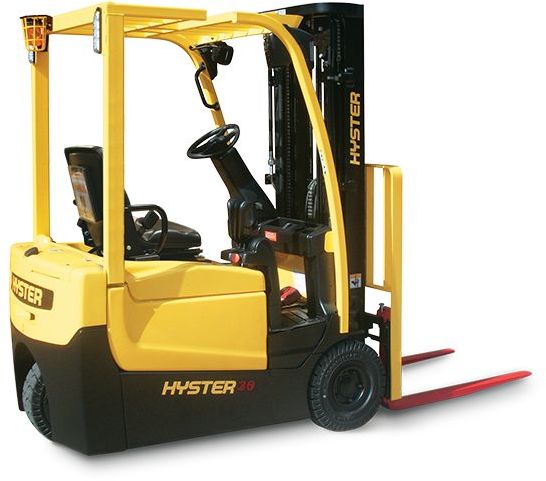

Hyster A30XNT
Contents:
Dimensions
| Length To Fork Face | 5.84 ft in (1778 mm) |
| Overall Width | 3.27 ft in (996 mm) |
| Overall Height - Mast Lowered | 6.5 ft in (1980 mm) |
| Wheelbase | 4.01 ft in (1222 mm) |
| Ground Clearance | 3.47 in (88 mm) |
| Height To Top Of Overhead Guard | 6.76 ft in (2060 mm) |
| Front Tread Range | 32.92 in (836 mm) |
| Gradeability | 22.4 % |
| Rear Tread Range | 35.28 in (896 mm) |
| Right Angle Stack | 10.11 ft in (3079 mm) |
| Turning Radius | 4.77 ft in (1452 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Load Capacity | 3000.5 lb (1361 kg) |
| Max Fork Spread | 112.6 in (2860 mm) |
| Lower Speed | 91 ft/min (27.74 m/min) |
| Lift Speed | 101 ft/min (30.79 m/min) |
| Load Center | 24.02 in (610 mm) |
Engine
| Engine Make | Hyster |
| Engine Model | A30XNT |
Operational
| Operating Weight | 4830.4 lb (2191 kg) |
| Tire Type | Pneumatic Shaped Solid |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 7.8 mph (12.5 km/h) |
| Drawbar Pull | 1403 lb (636.4 kg) |
| Front Tire Size | 18 x 7-8 |
| Rear Tire Size | 18 x 7-8 |
| Axle Load - Front | 2783 lb (1262.4 kg) |
| Axle Load - Rear | 3663 lb (1661.6 kg) |
