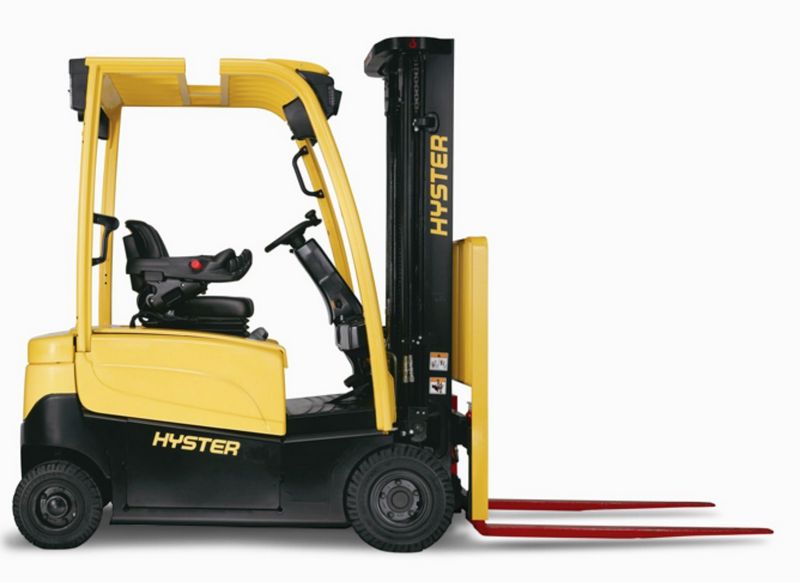

Hyster J35XN
Contents:
Dimensions
| Length To Fork Face | 6.48 ft in (1975 mm) |
| Overall Width | 3.45 ft in (1050 mm) |
| Overall Height - Mast Lowered | 6.5 ft in (1980 mm) |
| Wheelbase | 4.7 ft in (1431 mm) |
| Ground Clearance | 2.76 in (70 mm) |
| Height To Top Of Overhead Guard | 3.21 ft in (978 mm) |
| Max Fork Height | 1.19 ft in (360 mm) |
| Front Tread Range | 35 in (889 mm) |
| Gradeability | 24.3 % |
| Rear Tread Range | 35.36 in (898 mm) |
| Right Angle Stack | 10.75 ft in (3276 mm) |
| Turning Radius | 5.43 ft in (1654 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Load Capacity | 3000.5 lb (1361 kg) |
| Max Fork Spread | 167.8 in (4262 mm) |
| Lower Speed | 93 ft/min (28.35 m/min) |
| Lift Speed | 128 ft/min (39.02 m/min) |
| Load Center | 24.02 in (610 mm) |
Engine
| Engine Make | Hyster |
| Engine Model | J35XN |
Operational
| Operating Weight | 5269.1 lb (2390 kg) |
| Tire Type | Pneumatic Shaped Solid |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10 mph (16 km/h) |
| Drawbar Pull | 2719 lb (1233.4 kg) |
| Front Tire Size | 18 x 7-8 |
| Rear Tire Size | 15 x 4.5-8 |
| Axle Load - Front | 3705 lb (1680.6 kg) |
| Axle Load - Rear | 3937 lb (1785.8 kg) |
