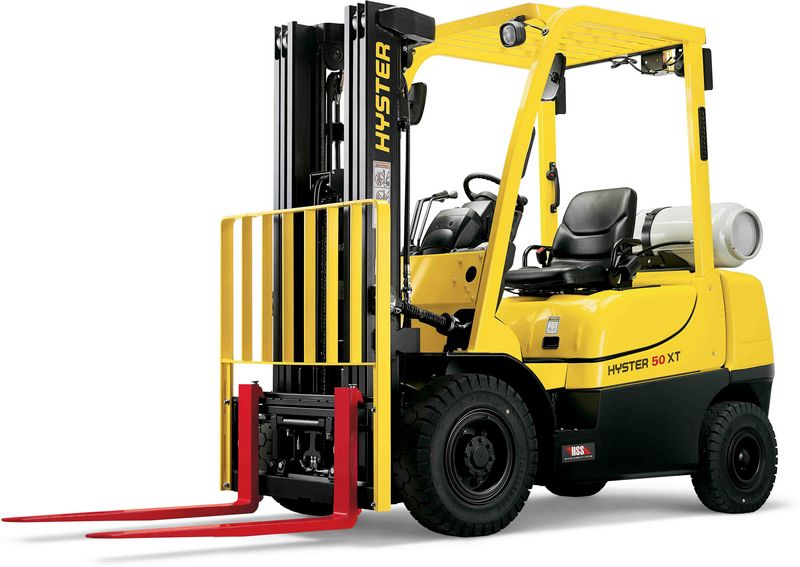

Hyster H50XT
Contents:
Dimensions
| Length To Fork Face | 8.5 ft in (2589 mm) |
| Overall Width | 3.82 ft in (1162 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 5.33 ft in (1623 mm) |
| Ground Clearance | 7.49 in (190 mm) |
| Height To Top Of Overhead Guard | 7.31 ft in (2228 mm) |
| Max Fork Height | 10.81 ft in (3292 mm) |
| Gradeability | 30.2 % |
| Right Angle Stack | 8.89 ft in (2707 mm) |
| Turning Radius | 7.34 ft in (2236 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 6 degrees |
| Lower Speed | 114 ft/min (34.75 m/min) |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 5000 lb (2267.97 kg) |
| Lift Speed | 128 ft/min (39.02 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | PSI 2.4L |
| Power | 62 hp (46.3 kw) |
| Torque | 124 lb ft (168.2 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 143 cu in (2.4 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 8910 lb (4041.6 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.6 mph (18.7 km/h) |
| Drawbar Pull | 4916 lb (2229.9 kg) |
| Fuel Capacity | 18.2 gal (68.9 L) |
| Front Tire Size | 7.00 x 12 - 12 |
| Rear Tire Size | 6.00 x 9 |
| Hydraulic System Relief Valve Pressure | 2550 psi (17581.7 kPa) |
| Hydraulic Tank | 11.1 gal (42.1 L) |
| Axle Load - Front | 3695 lb (1676.1 kg) |
| Axle Load - Rear | 5210 lb (2363.3 kg) |
Brakes
| Service Brake | Foot/Hydraulic |
| Parking Brake | Hand/Mechanical |
