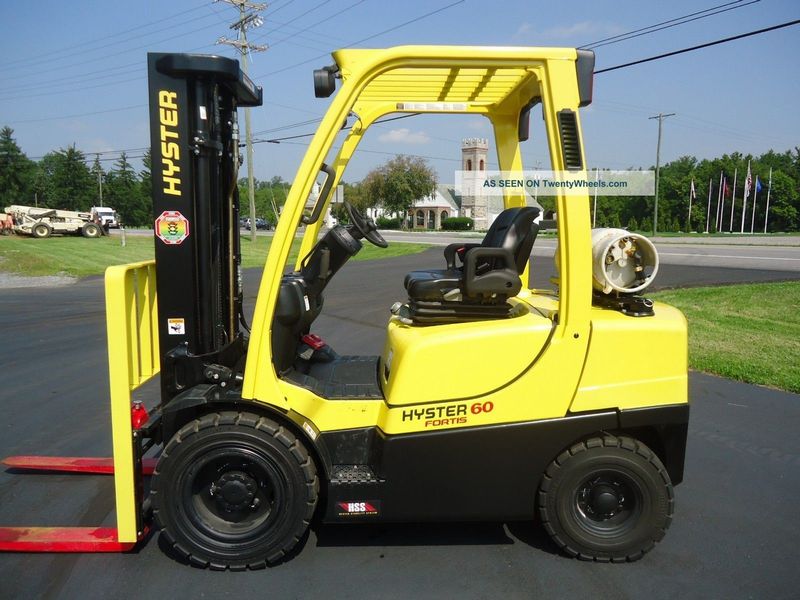

Hyster H60FT
Contents:
Dimensions
| Length To Fork Face | 8.62 ft in (2625 mm) |
| Overall Width | 3.9 ft in (1186 mm) |
| Overall Height - Mast Lowered | 7.37 ft in (2245 mm) |
| Wheelbase | 5.33 ft in (1623 mm) |
| Ground Clearance | 6.3 in (160 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.53 ft in (3209 mm) |
| Gradeability | 32 % |
| Right Angle Stack | 9.05 ft in (2757 mm) |
| Turning Radius | 7.06 ft in (2149 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 6 degrees |
| Load Center | 24.02 in (610 mm) |
| Lower Speed | 93 ft/min (28.35 m/min) |
| Lift Speed | 104 ft/min (31.7 m/min) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Max Fork Spread | 43.27 in (1099 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | PSI 2.4L |
| Power | 59 hp (44 kw) |
| Torque | 121 lb ft (164.1 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 143 cu in (2.4 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 9943 lb (4510.1 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.8 mph (19 km/h) |
| Drawbar Pull | 4497 lb (2039.9 kg) |
| Fuel Capacity | 13.9 gal (52.7 L) |
| Front Tire Size | 7.00 x 12 - 12 |
| Rear Tire Size | 6.50 x 10 |
| Hydraulic System Relief Valve Pressure | 2250 psi (15513.2 kPa) |
| Hydraulic Tank | 12.1 gal (45.9 L) |
| Axle Load - Front | 3865 lb (1753.2 kg) |
| Axle Load - Rear | 6077 lb (2756.5 kg) |
Brakes
| Service Brake | Foot/Hydraulic |
| Parking Brake | Hand/Mechanical |
