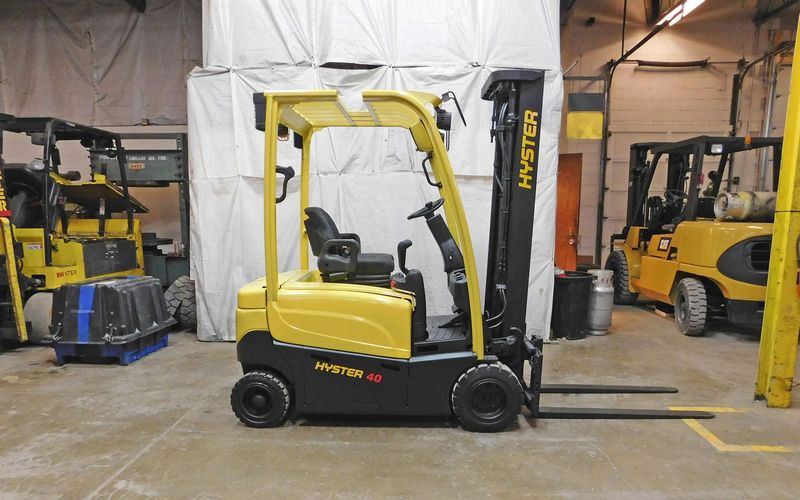

Hyster J40XN
Contents:
Dimensions
| Length To Fork Face | 6.48 ft in (1975 mm) |
| Overall Width | 3.67 ft in (1116 mm) |
| Overall Height - Mast Lowered | 6.5 ft in (1980 mm) |
| Wheelbase | 4.7 ft in (1431 mm) |
| Ground Clearance | 2.76 in (70 mm) |
| Height To Top Of Overhead Guard | 6.8 ft in (2070 mm) |
| Front Tread Range | 35.75 in (908 mm) |
| Gradeability | 36 % |
| Rear Tread Range | 35.36 in (898 mm) |
| Turning Radius | 5.43 ft in (1654 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 3999.19 lb (1814 kg) |
| Lift Speed | 128 ft/min (39.02 m/min) |
| Lower Speed | 93 ft/min (28.35 m/min) |
Engine
| Engine Make | Manufacturer Hyster |
| Engine Model | J40XN |
Operational
| Operating Weight | 5311 lb (2409 kg) |
| Tire Type | Pneumatic Shaped Solid |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10 mph (16 km/h) |
| Drawbar Pull | 2719 lb (1233.4 kg) |
| Operating Voltage | 36 V |
| Front Tire Size | 200 / 50-10 |
| Rear Tire Size | 140 / 55-9 |
| Axle Load - Front | 3839 lb (1741.4 kg) |
| Axle Load - Rear | 3866 lb (1753.6 kg) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
