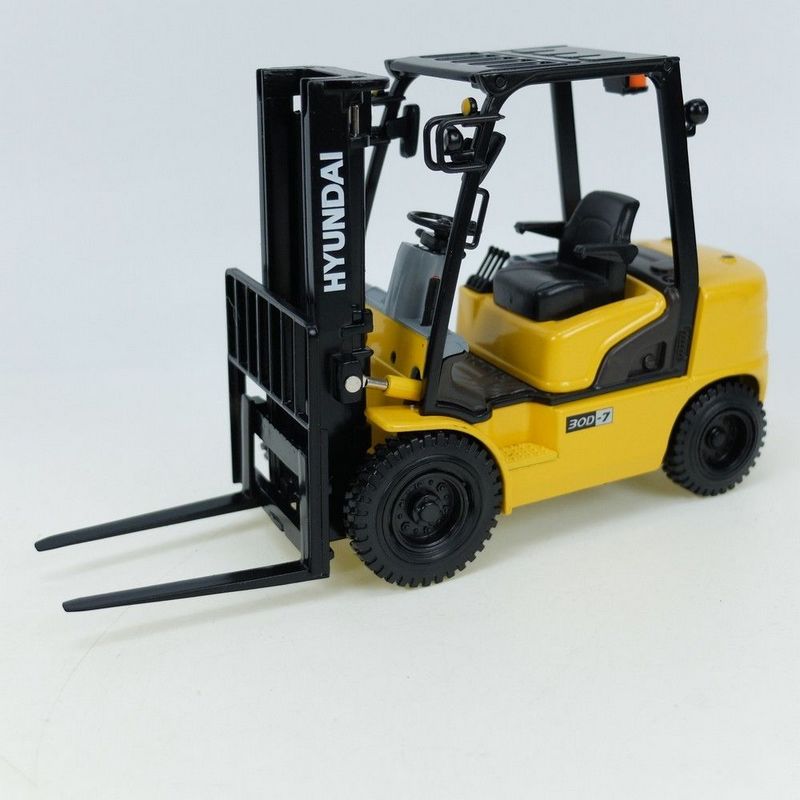

Hyundai 30D-7
Contents:
Dimensions
| Length To Fork Face | 8.82 ft in (2688 mm) |
| Overall Width | 4.04 ft in (1230 mm) |
| Overall Height - Mast Lowered | 7.19 ft in (2190 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 4.65 in (118 mm) |
| Height To Top Of Overhead Guard | 7.16 ft in (2180 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 7.86 ft in (2393 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Load Center | 24 in (609.6 mm) |
| Lift Speed | 94.49 ft/min (28.8 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V3300 |
| Power | 63.1 hp (47 kw) |
| Displacement | 202.5 cu in (3.4 L) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 9725 lb (4411.2 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.3 mph (19.8 km/h) |
