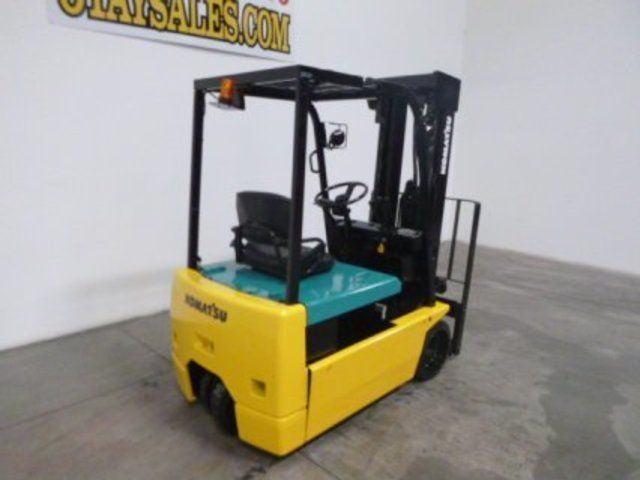

Komatsu FB18M-3
Contents:
Dimensions
| Length To Fork Face | 6.37 ft in (1940 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 7.22 ft in (2200 mm) |
| Wheelbase | 4.3 ft in (1310 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Height To Top Of Overhead Guard | 6.4 ft in (1950 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Right Angle Stack | 6.35 ft in (1935 mm) |
| Turning Radius | 5.07 ft in (1545 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 7 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 3500 lb (1587.58 kg) |
| Lift Speed | 61 ft/min (18.6 m/min) |
Engine
| Engine Make | 0 |
| Fuel Type | Electric 36V |
Operational
| Operating Weight | 7330 lb (3324.9 kg) |
| Tire Type | Cuhion Solid |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9 mph (14.5 km/h) |
