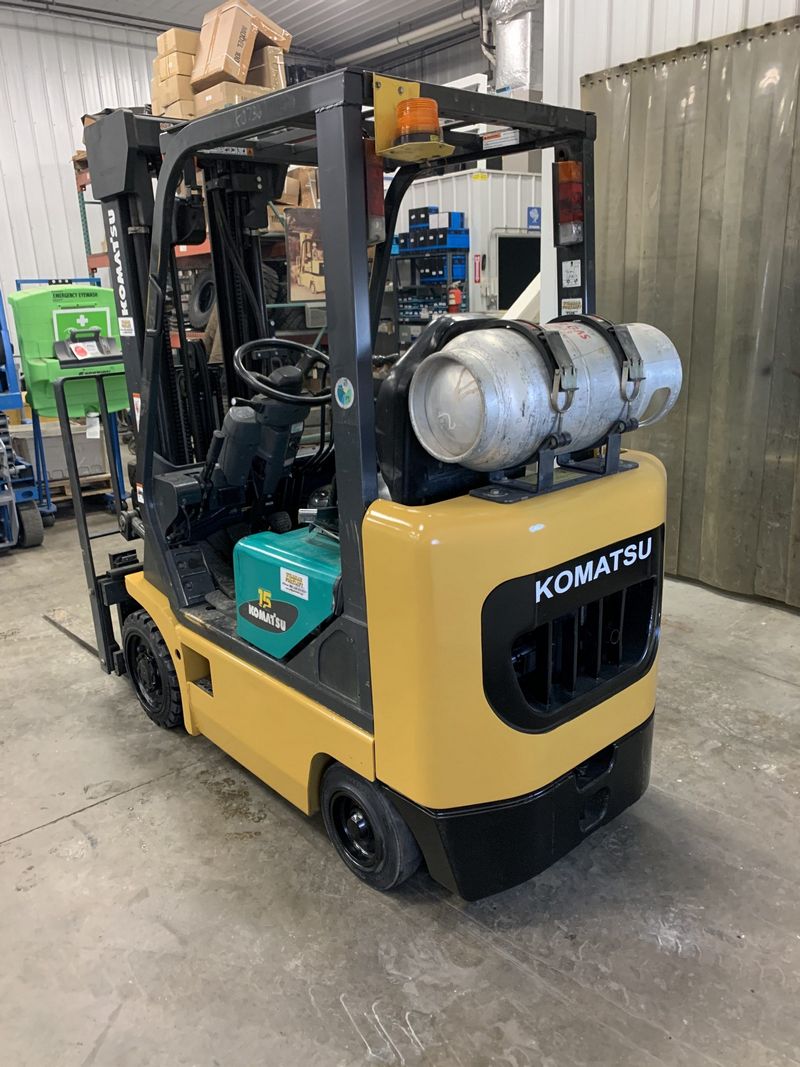

Komatsu FG15ST-17
Contents:
Dimensions
| Length To Fork Face | 6.62 ft in (2015 mm) |
| Overall Width | 3.17 ft in (965 mm) |
| Overall Height - Mast Lowered | 6.96 ft in (2120 mm) |
| Wheelbase | 3.94 ft in (1200 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Height To Top Of Overhead Guard | 6.47 ft in (1970 mm) |
| Max Fork Height | 10.67 ft in (3250 mm) |
| Right Angle Stack | 6.94 ft in (2115 mm) |
| Turning Radius | 5.66 ft in (1725 mm) |
Mast
| Mast Tip Forward | 7 degrees |
| Mast Tip Rear | 7 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 3000 lb (1360.78 kg) |
| Lift Speed | 135 ft/min (41.15 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 0 |
| Engine Model | K21 |
| Power | 60.1 hp (44.9 kw) |
| Torque | 115 lb ft (156 Nm) |
| Power Measured @ | 1950 rpm |
| Displacement | 126 cu in (2.1 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | Gasoline |
Operational
| Operating Weight | 5941.5 lb (2695 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.3 mph (16.6 km/h) |
