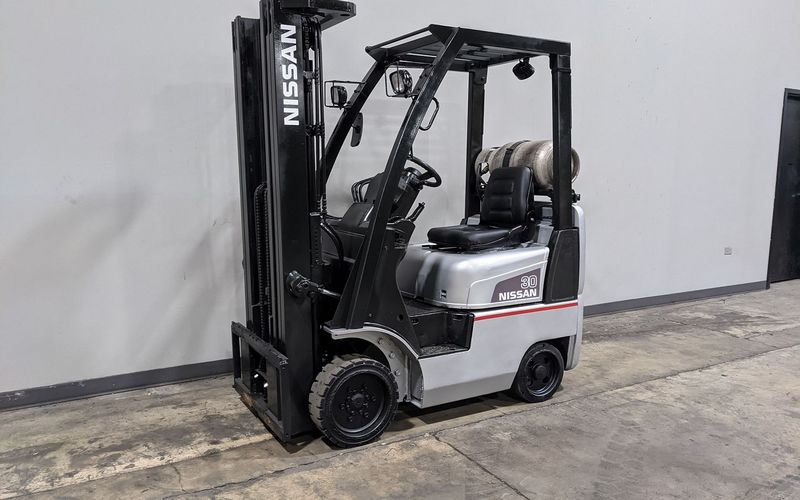

Nissan CF30
Contents:
Dimensions
| Length To Fork Face | 6.83 ft in (2080 mm) |
| Overall Width | 3.19 ft in (970.28 mm) |
| Overall Height - Mast Lowered | 6.76 ft in (2059.94 mm) |
| Wheelbase | 3.91 ft in (1190 mm) |
| Ground Clearance | 2.56 in (65 mm) |
| Height To Top Of Overhead Guard | 6.76 ft in (2060 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Counterweight Clearance | 3.78 ft in (1150 mm) |
| Fork Length | 42.13 in (1070 mm) |
| Fork Thickness | 1.58 in (40 mm) |
| Fork Width | 3.94 in (100 mm) |
| Free Lift | 3.94 in (100 mm) |
| Gradeability | 20 % |
| Right Angle Stack | 6.98 ft in (2125 mm) |
| Turning Radius | 5.7 ft in (1734.82 mm) |
Mast
| Load Capacity | 3000 lb (1360.78 kg) |
| Lift Speed | 122 ft/min (37.19 m/min) |
| Lower Speed | 98.4 ft/min (30 m/min) |
| Load Center | 24 in (609.6 mm) |
Engine
| Engine Make | Nissan |
| Engine Model | MCP1F1A15LV/DV |
| Power | 55 hp (41.1 kw) |
| Torque | 111.4 lb ft (151 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 126 cu in (2.1 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LP - G/LP |
Operational
| Operating Weight | 5974.6 lb (2710 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.9 mph (17.6 km/h) |
| Drawbar Pull | 3417.2 lb (1550 kg) |
Tires
| Tires - Size_Front | 18 X 6 X 12.13 |
| Tires - Size_Rear | 14 X 5 X 10 |
Brakes
| Service Brake | Drum and Shoe |
| Parking Brake | Hand |
