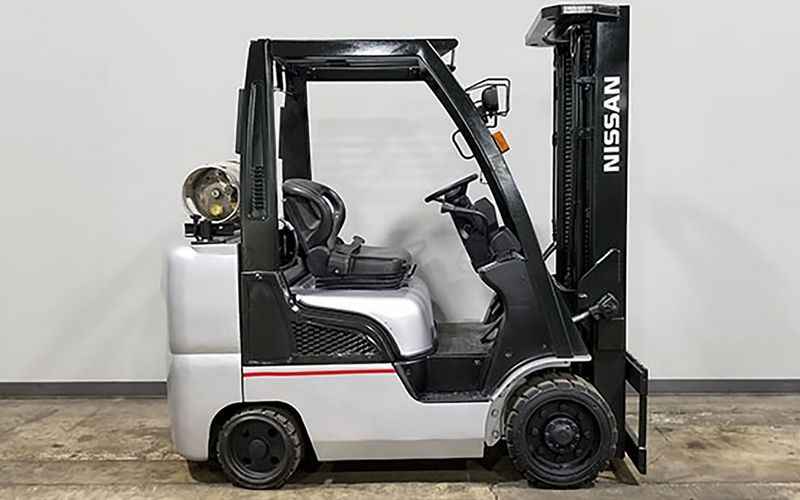

Nissan CFU40
Contents:
Dimensions
| Length To Fork Face | 7.42 ft in (2260.6 mm) |
| Overall Width | 3.51 ft in (1069.34 mm) |
| Overall Height - Mast Lowered | 6.93 ft in (2110 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Ground Clearance | 3.15 in (80 mm) |
| Height To Top Of Overhead Guard | 6.85 ft in (2085 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Counterweight Clearance | 3.83 ft in (1165 mm) |
| Fork Length | 42.13 in (1070 mm) |
| Fork Thickness | 1.58 in (40 mm) |
| Fork Width | 3.94 in (100 mm) |
| Free Lift | 4.14 in (105 mm) |
| Gradeability | 21 % |
| Right Angle Stack | 7.68 ft in (2340 mm) |
| Turning Radius | 6.34 ft in (1930.4 mm) |
Mast
| Load Capacity | 4000 lb (1814.37 kg) |
| Lift Speed | 129.9 ft/min (39.6 m/min) |
| Lower Speed | 98.4 ft/min (30 m/min) |
| Load Center | 24 in (609.6 mm) |
Engine
| Engine Make | Nissan |
| Engine Model | MCU1F2A20LV / DV |
| Power | 62.9 hp (47 kw) |
| Torque | 111.4 lb ft (151.1 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 126 cu in (2.1 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LP - G/LP |
Operational
| Operating Weight | 7132 lb (3235 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (17.1 km/h) |
| Drawbar Pull | 4188.8 lb (1900 kg) |
Tires
| Tires - Size_Front | 21 x 7 x 15 |
| Tires - Size_Rear | 16.25 x 6 x 11.25 |
Brakes
| Service Brake | Drum and shoe |
| Parking Brake | Hand |
