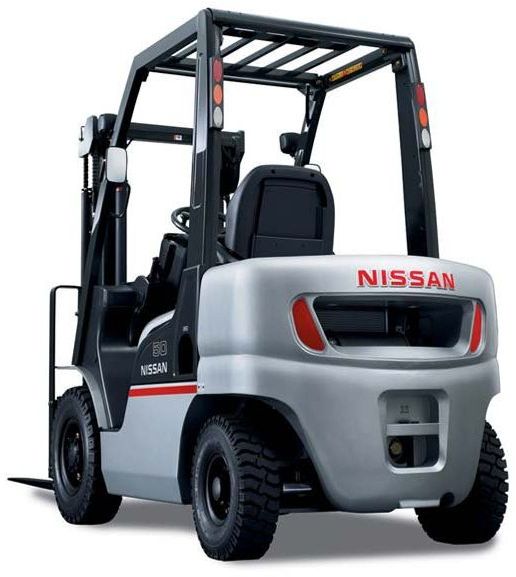

Nissan PF60
Contents:
Dimensions
| Length To Fork Face | 8.8 ft in (2680 mm) |
| Overall Width | 3.35 ft in (1020 mm) |
| Overall Height - Mast Lowered | 7.14 ft in (2175 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 5.71 in (145 mm) |
| Height To Top Of Overhead Guard | 7.06 ft in (2150 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Counterweight Clearance | 3.61 ft in (1100 mm) |
| Fork Length | 42.13 in (1070 mm) |
| Fork Thickness | 1.97 in (50 mm) |
| Fork Width | 4.93 in (125 mm) |
| Gradeability | 28 % |
| Right Angle Stack | 9.13 ft in (2780 mm) |
| Turning Radius | 7.55 ft in (2300 mm) |
Mast
| Lift Speed | 104.3 ft/min (31.8 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 5996.58 lb (2720 kg) |
Engine
| Engine Model | MUGIF230JV/LV/DV |
| Power | 62.9 hp (47 kw) |
| Torque | 138.7 lb ft (188.1 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 151.8 cu in (2.5 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 9265 lb (4202.6 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.1 mph (19.5 km/h) |
