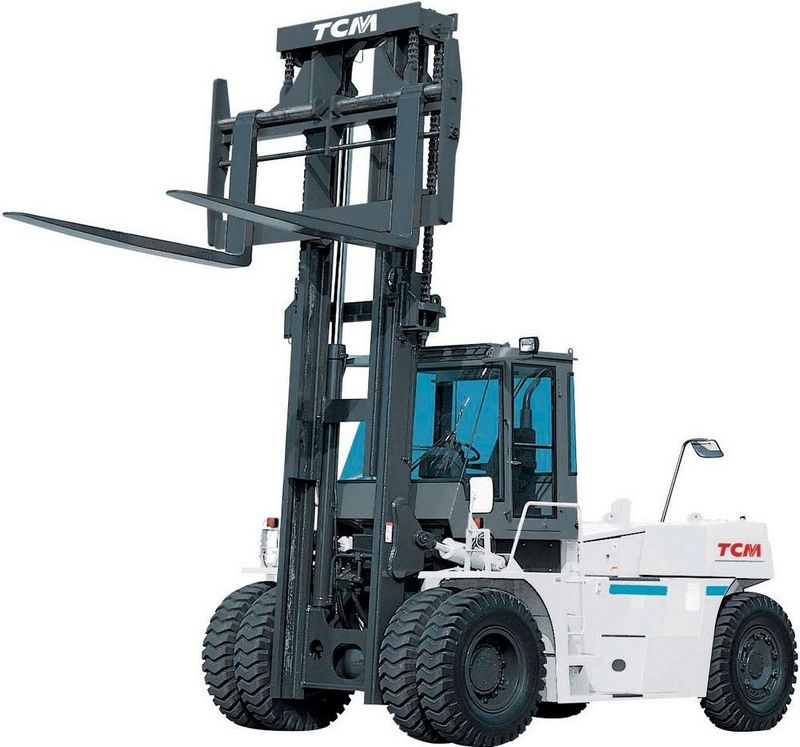

TCM FD230-2
Contents:
Dimensions
| Length To Fork Face | 26.22 ft in (7990 mm) |
| Overall Width | 10.04 ft in (3060 mm) |
| Overall Height - Mast Lowered | 11.75 ft in (3580 mm) |
| Wheelbase | 11.98 ft in (3650 mm) |
| Ground Clearance | 11.42 in (290 mm) |
| Height To Top Of Overhead Guard | 10.7 ft in (3260 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 17.56 ft in (5350 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 50706.32 lb (23000 kg) |
| Load Center | 36 in (914.4 mm) |
| Lift Speed | 47.2 ft/min (14.39 m/min) |
Engine
| Engine Make | 2353 |
| Engine Model | 6BG1T |
| Power | 172 hp (128.3 kw) |
| Torque | 457.3 lb ft (620 Nm) |
| Power Measured @ | 2200 rpm |
| Displacement | 396.3 cu in (6.5 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | diesel |
Operational
| Operating Weight | 67814.2 lb (30760 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 19.9 mph (32 km/h) |
