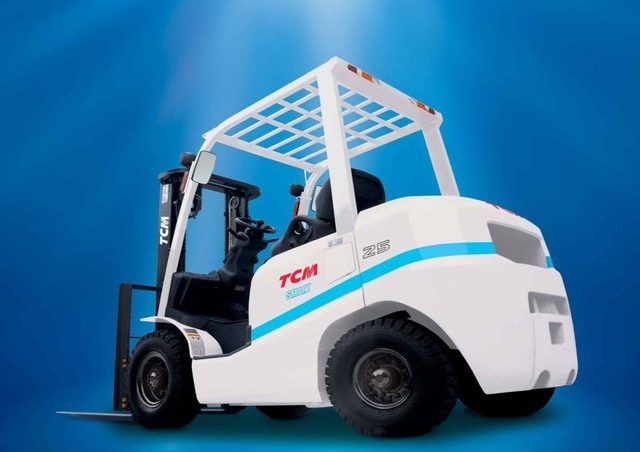

TCM FHD25T6
Contents:
Dimensions
| Overall Width | 3.78 ft in (1150.62 mm) |
| Overall Height - Mast Lowered | 6.8 ft in (2069.9 mm) |
| Max Fork Height | 10.84 ft in (3301.9 mm) |
| Turning Radius | 7.35 ft in (2240.29 mm) |
Mast
| Lift Speed | 128 ft/min (39.02 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 5000 lb (2267.97 kg) |
Engine
| Engine Model | V3300 |
| Power | 66.1 hp (49.3 kw) |
| Displacement | 203.1 cu in (3.4 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 8220 lb (3728.6 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.5 mph (18.6 km/h) |
