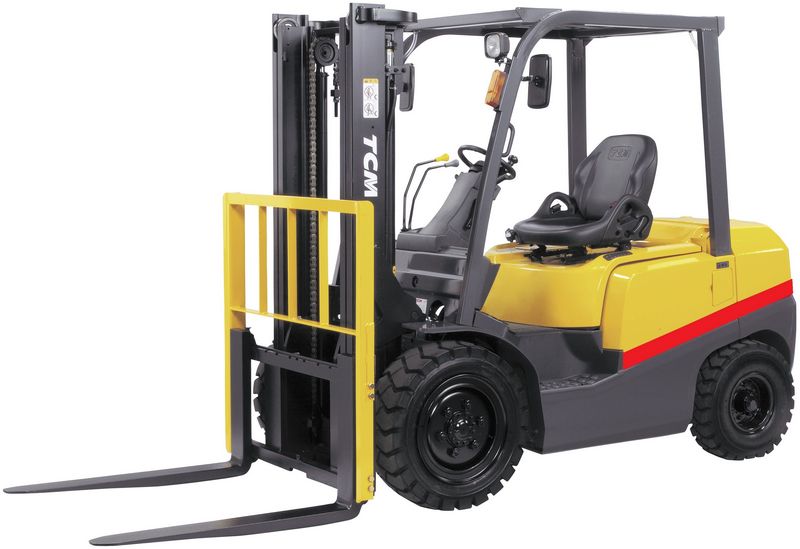

TCM FHG25T7
Contents:
Dimensions
| Overall Width | 3.78 ft in (1150.62 mm) |
| Overall Height - Mast Lowered | 6.8 ft in (2069.9 mm) |
| Max Fork Height | 10.84 ft in (3301.9 mm) |
| Turning Radius | 7.35 ft in (2240.29 mm) |
Mast
| Lift Speed | 122.1 ft/min (37.22 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 5000 lb (2267.97 kg) |
Engine
| Engine Model | K25 |
| Power | 60.9 hp (45.5 kw) |
| Displacement | 151.8 cu in (2.5 L) |
| Fuel Type | Gas and LP |
Operational
| Operating Weight | 7920 lb (3592.5 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.8 mph (19 km/h) |
