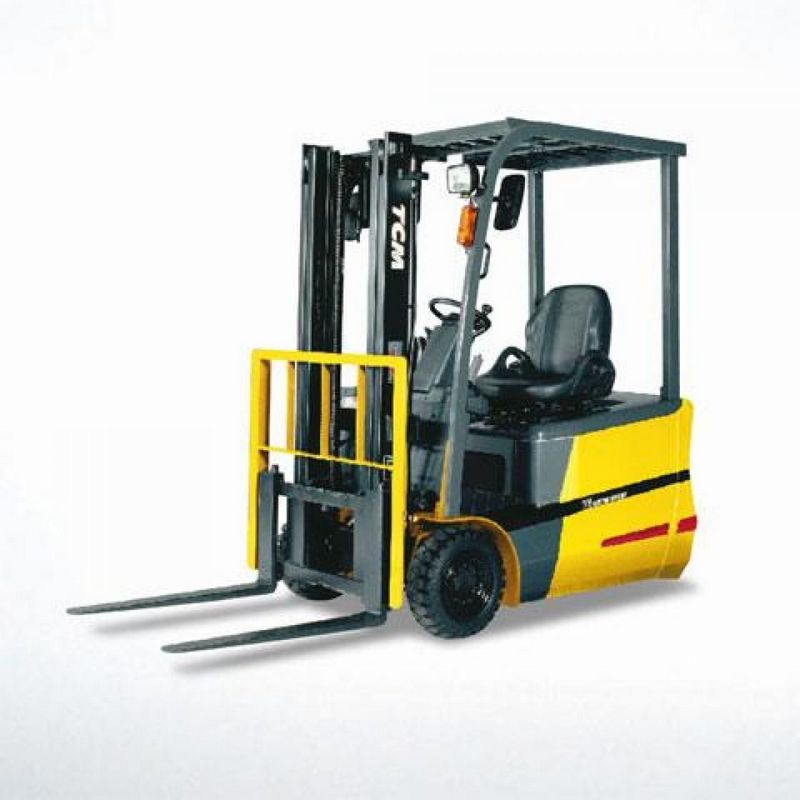

TCM FTB18-7
Contents:
Dimensions
| Length To Fork Face | 9.64 ft in (2936.24 mm) |
| Overall Width | 3.53 ft in (1074.42 mm) |
| Overall Height - Mast Lowered | 6.55 ft in (1993.9 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
Mast
| Lift Speed | 78.7 ft/min (78.7 -) |
| Load Capacity | 3500 lb (1587.58 kg) |
Engine
| Engine Model | Electric engine |
Operational
| Operating Weight | 6680 lb (3030 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 9 mph (14.5 km/h) |
