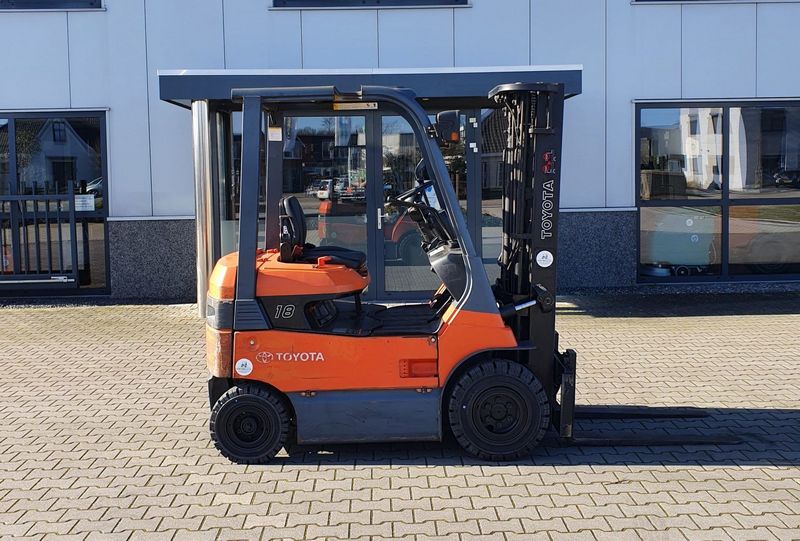

Toyota 7FBH18
Contents:
Dimensions
| Length To Fork Face | 6.94 ft in (2115 mm) |
| Overall Width | 3.66 ft in (1115.06 mm) |
| Overall Height - Mast Lowered | 7 ft in (2131.17 mm) |
| Height To Top Of Overhead Guard | 6.91 ft in (2105 mm) |
| Turning Radius | 5.85 ft in (1780.52 mm) |
| Right Angle Stack | 7.17 ft in (2184.38 mm) |
Mast
| Load Capacity | 3500 lb (1587.58 kg) |
| Lift Speed | 73 ft/min (22.26 m/min) |
| Load Center | 24 in (609.6 mm) |
Engine
| Fuel Type | Electric |
Operational
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9 mph (14.5 km/h) |
