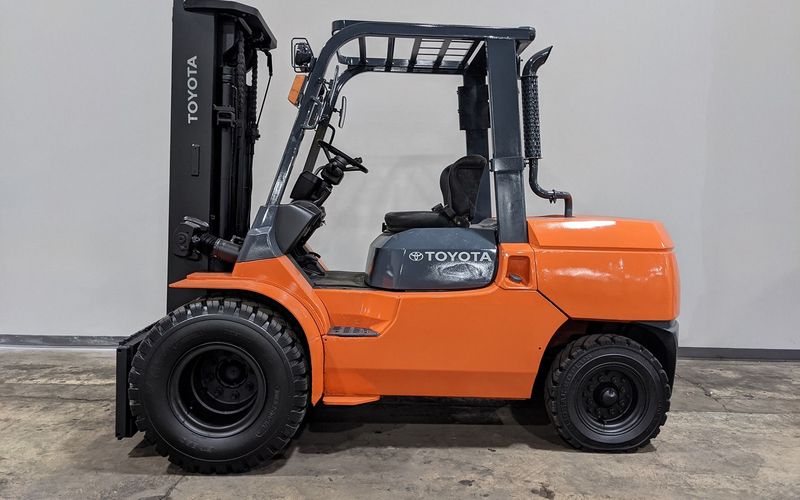

Toyota 7FDU45
Contents:
Dimensions
| Length To Fork Face | 10.26 ft in (3125 mm) |
| Overall Width | 4.76 ft in (1450 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Height To Top Of Overhead Guard | 7.5 ft in (2285 mm) |
| Right Angle Stack | 10.9 ft in (3319.89 mm) |
| Turning Radius | 9.03 ft in (2750 mm) |
Mast
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 10000 lb (4535.93 kg) |
| Lift Speed | 95 ft/min (28.96 m/min) |
Engine
| Power | 84 hp (62.7 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.7 mph (22.1 km/h) |
