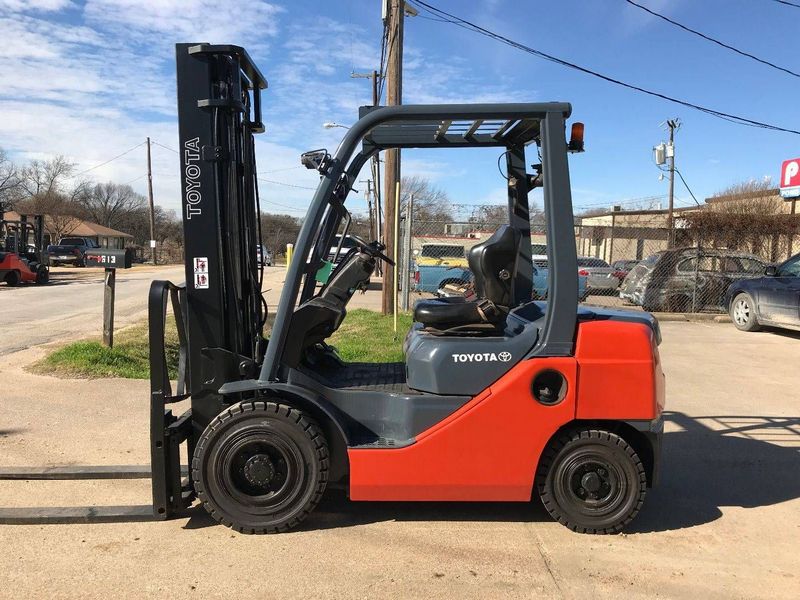

Toyota 8FDU25
Contents:
Dimensions
| Length To Fork Face | 8.67 ft in (2640 mm) |
| Overall Width | 3.78 ft in (1150 mm) |
| Overall Height - Mast Lowered | 7.04 ft in (2145 mm) |
| Wheelbase | 5.42 ft in (1650 mm) |
| Ground Clearance | 3.75 in (95 mm) |
| Height To Top Of Overhead Guard | 6.93 ft in (2110 mm) |
| Max Fork Height | 10.96 ft in (3340 mm) |
| Free Lift | 6.11 in (155 mm) |
| Gradeability | 33 % |
| Right Angle Stack | 8.83 ft in (2690 mm) |
| Turning Radius | 7.29 ft in (2220 mm) |
Mast
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 4960.41 lb (2250 kg) |
| Lift Speed | 121 ft/min (121 -) |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Max Fork Spread | 9.85 in (250 mm) |
Engine
| Battery | 12 V |
| Number Of Cylinders | 3 |
| Engine Make | TOYOTA |
| Engine Model | 1ZS |
| Power | 55 hp (41.1 kw) |
| Torque | 148 lb ft (200.7 Nm) |
| Power Measured @ | 2200 rpm |
| Displacement | 110 cu in (1.9 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 8002.8 lb (3630 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.8 mph (19 km/h) |
| Drawbar Pull | 4255 lb (1930 kg) |
| Fuel Capacity | 15.9 gal (60.2 L) |
Tires
| Tires - Size_Front | 7.00-12-12PR |
| Tires - Size_Rear | 6.00-9-10PR (1) |
Hydraulic
| Main Pump Flow Standard | 19 gal/min (72 L/min) |
| Maximum Operating Pressure | 2275 psi (15685.6 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
