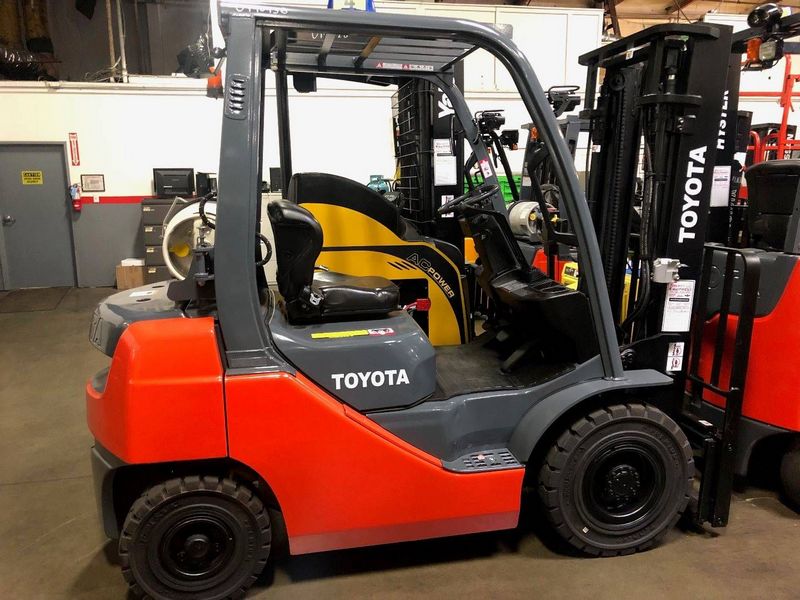

Toyota 8FGU20
Contents:
Dimensions
| Length To Fork Face | 8.45 ft in (2575 mm) |
| Overall Width | 3.78 ft in (1150 mm) |
| Overall Height - Mast Lowered | 7.04 ft in (2145 mm) |
| Wheelbase | 5.42 ft in (1650 mm) |
| Ground Clearance | 3.75 in (95 mm) |
| Height To Top Of Overhead Guard | 6.93 ft in (2110 mm) |
| Max Fork Height | 10.96 ft in (3340 mm) |
| Free Lift | 6.11 in (155 mm) |
| Gradeability | 41 % |
| Right Angle Stack | 8.6 ft in (2620 mm) |
| Turning Radius | 7.06 ft in (2150 mm) |
Mast
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 3968.33 lb (1800 kg) |
| Lift Speed | 118 ft/min (35.97 m/min) |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Max Fork Spread | 40 in (1016 mm) |
Engine
| Battery | 12 V |
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 4Y - ECS |
| Power | 51 hp (38.1 kw) |
| Torque | 118 lb ft (160 Nm) |
| Power Measured @ | 2570 rpm |
| Displacement | 136 cu in (2.3 L) |
| Torque Measured @ | 2100 rpm |
| Fuel Type | Gasoline |
Operational
| Operating Weight | 7076.9 lb (3210 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.9 mph (17.6 km/h) |
| Drawbar Pull | 4255 lb (1930 kg) |
| Fuel Capacity | 15.9 gal (60.2 L) |
Tires
| Tires - Size_Front | 7.00-12-12PR (1) |
| Tires - Size_Rear | 6.00-9-10PR (1) |
Hydraulic
| Main Pump Flow Standard | 20 gal/min (75.8 L/min) |
| Maximum Operating Pressure | 2275 psi (15685.6 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
