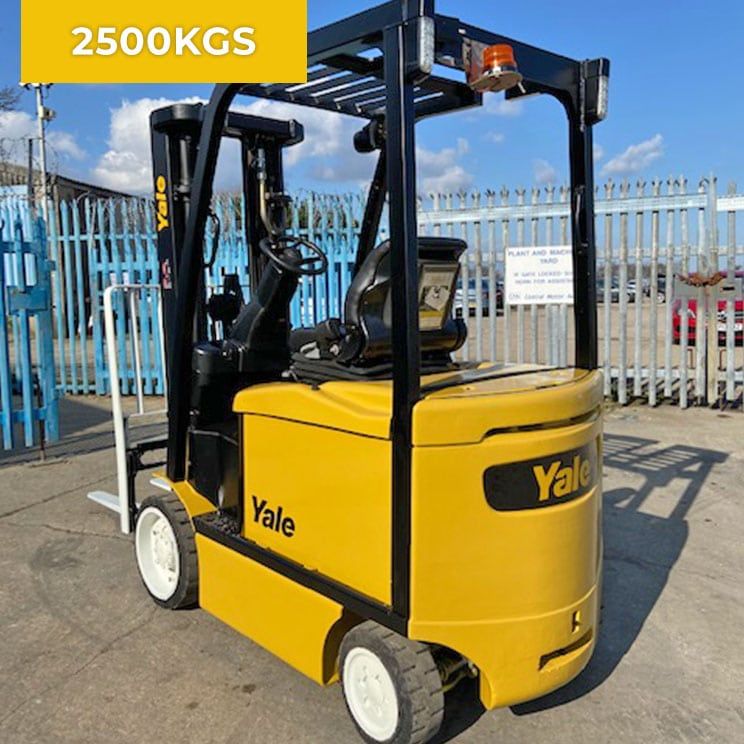

Yale ERC 25 AGF (SWB)
Contents:
Dimensions
| Length To Fork Face | 6.65 ft in (2026 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 7.01 ft in (2135 mm) |
| Wheelbase | 4.06 ft in (1235 mm) |
| Ground Clearance | 3.35 in (85 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.8 ft in (3290 mm) |
| Turning Radius | 5.84 ft in (1780 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 8 degrees |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Capacity | 5511.56 lb (2500 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 70.87 ft/min (21.6 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 9557.1 lb (4335 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.4 mph (15.1 km/h) |
