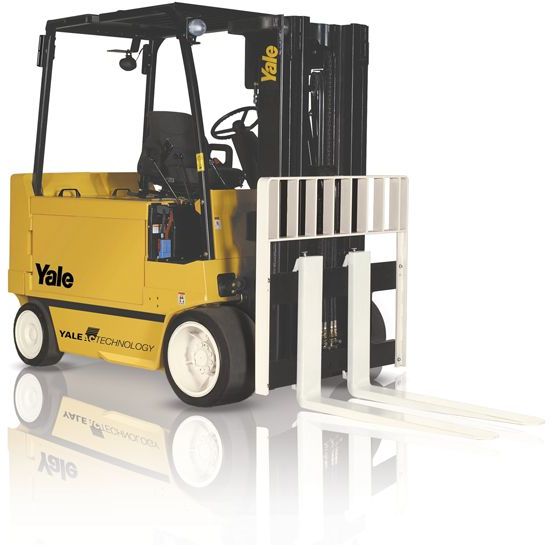

Yale ERC 40 HG
Contents:
Dimensions
| Length To Fork Face | 7.97 ft in (2428 mm) |
| Overall Width | 4.17 ft in (1270 mm) |
| Overall Height - Mast Lowered | 7.01 ft in (2134 mm) |
| Wheelbase | 5.17 ft in (1575 mm) |
| Ground Clearance | 4.49 in (114 mm) |
| Height To Top Of Overhead Guard | 7.85 ft in (2390 mm) |
| Max Fork Height | 10.01 ft in (3050 mm) |
| Turning Radius | 7.02 ft in (2138 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 6 degrees |
| Lower Speed | 104.34 ft/min (31.8 m/min) |
| Load Capacity | 8818.5 lb (4000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 72.84 ft/min (22.2 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 15774.1 lb (7155 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.9 mph (15.9 km/h) |
