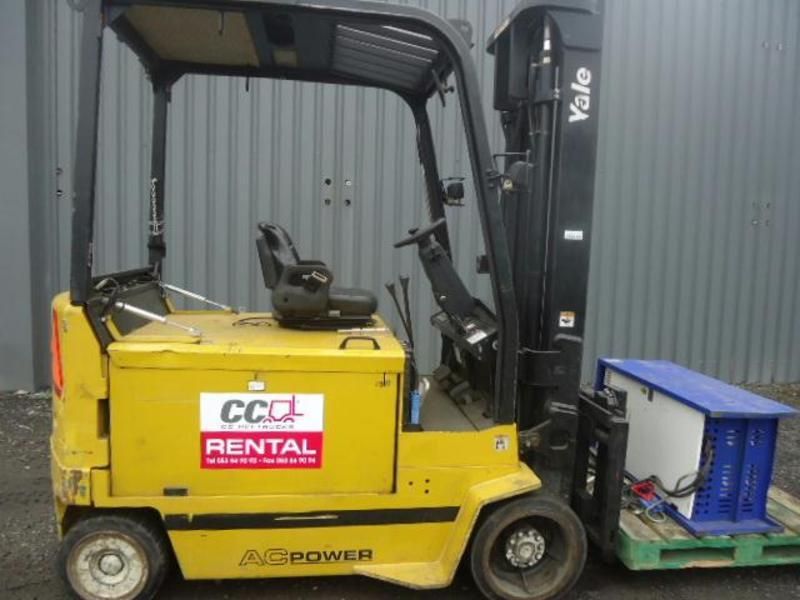

Yale ERC 45 HG
Contents:
Dimensions
| Length To Fork Face | 8.53 ft in (2599 mm) |
| Overall Width | 4.34 ft in (1320 mm) |
| Overall Height - Mast Lowered | 7.01 ft in (2134 mm) |
| Wheelbase | 5.71 ft in (1740 mm) |
| Ground Clearance | 4.65 in (118 mm) |
| Height To Top Of Overhead Guard | 7.85 ft in (2390 mm) |
| Max Fork Height | 9.16 ft in (2790 mm) |
| Turning Radius | 7.6 ft in (2314 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 6 degrees |
| Lower Speed | 88.59 ft/min (27 m/min) |
| Load Capacity | 9920.81 lb (4500 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 57.09 ft/min (17.4 m/min) |
Engine
| Engine Make | 0 |
| Fuel Type | Electric |
Operational
| Operating Weight | 17879.5 lb (8110 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.4 mph (15.1 km/h) |
