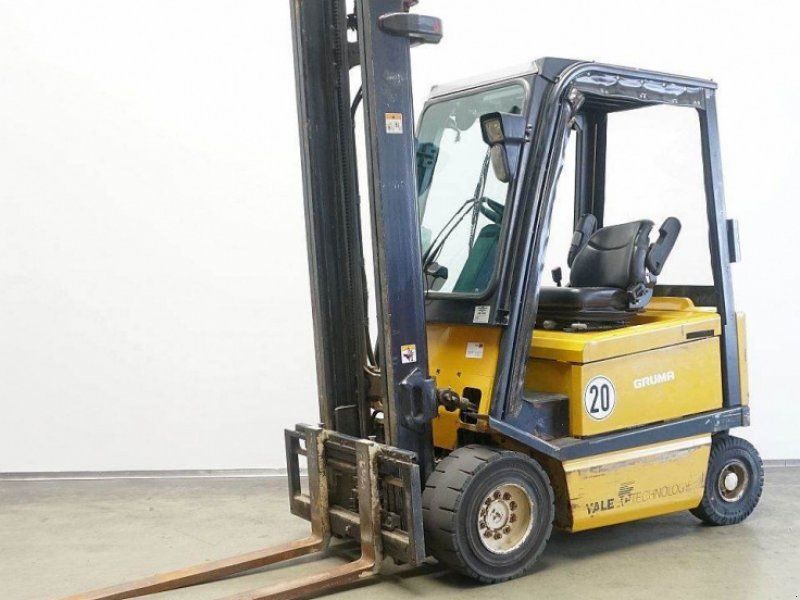

Yale ERP 25 ALF
Contents:
Dimensions
| Length To Fork Face | 7.43 ft in (2263 mm) |
| Overall Width | 3.92 ft in (1192 mm) |
| Overall Height - Mast Lowered | 7.04 ft in (2145 mm) |
| Wheelbase | 4.93 ft in (1502 mm) |
| Ground Clearance | 3.51 in (89 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.67 ft in (3250 mm) |
| Turning Radius | 6.55 ft in (1996 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 8 degrees |
| Lower Speed | 114.18 ft/min (34.8 m/min) |
| Load Capacity | 5511.56 lb (2500 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 68.9 ft/min (21 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 10317.7 lb (4680 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.2 mph (14.8 km/h) |
