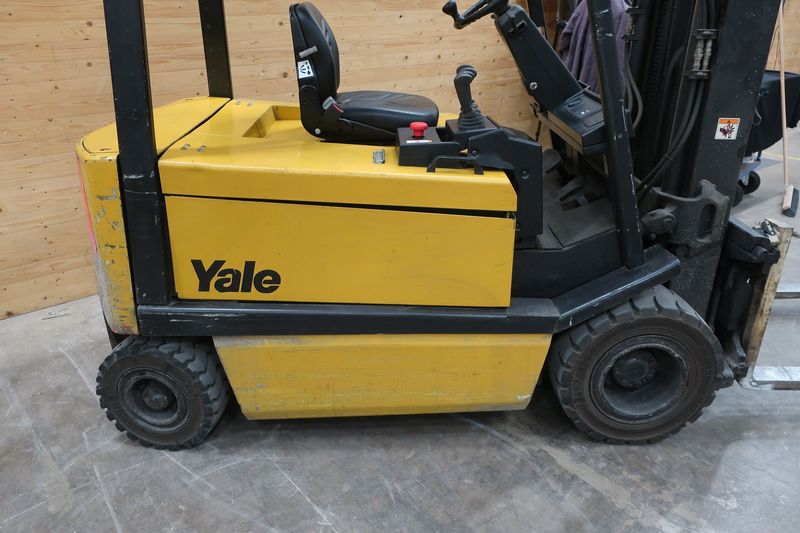

Yale ERP 30 ALF
Contents:
Dimensions
| Length To Fork Face | 7.92 ft in (2414 mm) |
| Overall Width | 3.92 ft in (1192 mm) |
| Overall Height - Mast Lowered | 7.04 ft in (2145 mm) |
| Wheelbase | 5.41 ft in (1646 mm) |
| Ground Clearance | 3.51 in (89 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.03 ft in (3055 mm) |
| Turning Radius | 7.05 ft in (2148 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 8 degrees |
| Lower Speed | 110.24 ft/min (33.6 m/min) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 59.06 ft/min (18 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 11122.4 lb (5045 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.1 mph (14.5 km/h) |
