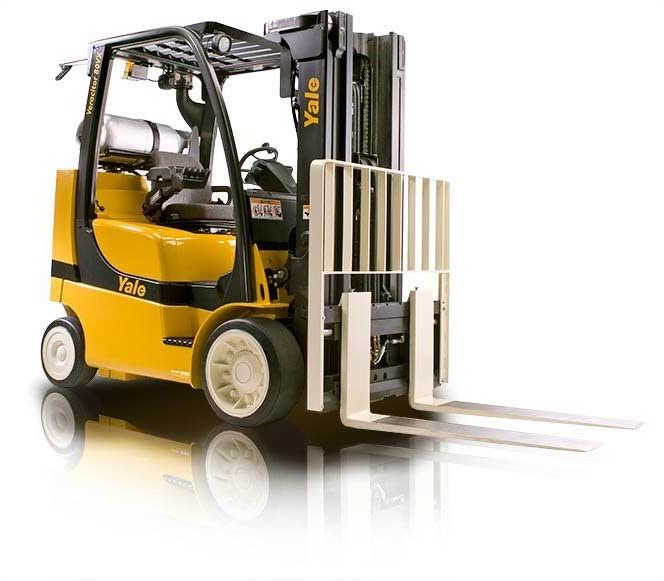

Yale GC080VX
Contents:
Dimensions
| Length To Fork Face | 6.8 ft in (2072.64 mm) |
| Overall Width | 3.09 ft in (939.79 mm) |
| Overall Height - Mast Lowered | 10.59 ft in (3225.79 mm) |
| Height To Top Of Overhead Guard | 6.92 ft in (2108.22 mm) |
| Max Fork Height | 18 ft in (5486.4 mm) |
| Turning Radius | 5.83 ft in (1775.46 mm) |
| Right Angle Stack | 7 ft in (2133.6 mm) |
Mast
| Load Capacity | 8000 lb (3628.74 kg) |
| Number Of Mast Sections | 3 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2357 |
| Displacement | 146.5 cu in (2.5 L) |
| Fuel Type | Gas/LPG |
Operational
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Max Speed | 10.4 mph (16.8 km/h) |
