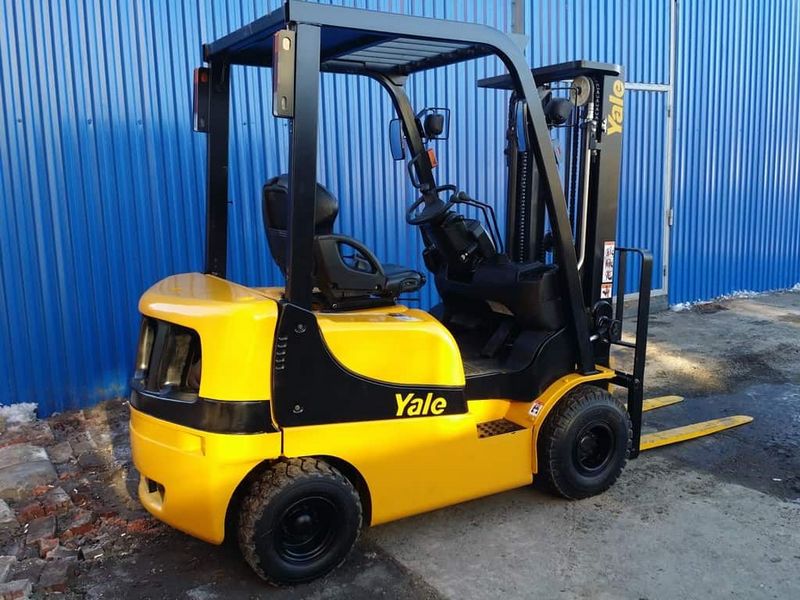

Yale HBF15T-5
Contents:
Dimensions
| Length To Fork Face | 6.11 ft in (1860 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 6.96 ft in (2120 mm) |
| Wheelbase | 4.25 ft in (1295 mm) |
| Ground Clearance | 3.55 in (90 mm) |
| Height To Top Of Overhead Guard | 6.4 ft in (1950 mm) |
| Max Fork Height | 14.28 ft in (4352 mm) |
| Right Angle Stack | 9.8 ft in (2985 mm) |
| Turning Radius | 4.93 ft in (1500 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 7 degrees |
| Load Capacity | 3000 lb (1360.78 kg) |
| Lower Speed | 89 ft/min (27.13 m/min) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 94.5 ft/min (28.81 m/min) |
Operational
| Operating Weight | 6427 lb (2915.3 kg) |
| Tire Type | Super Elastic, Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.9 mph (16 km/h) |
