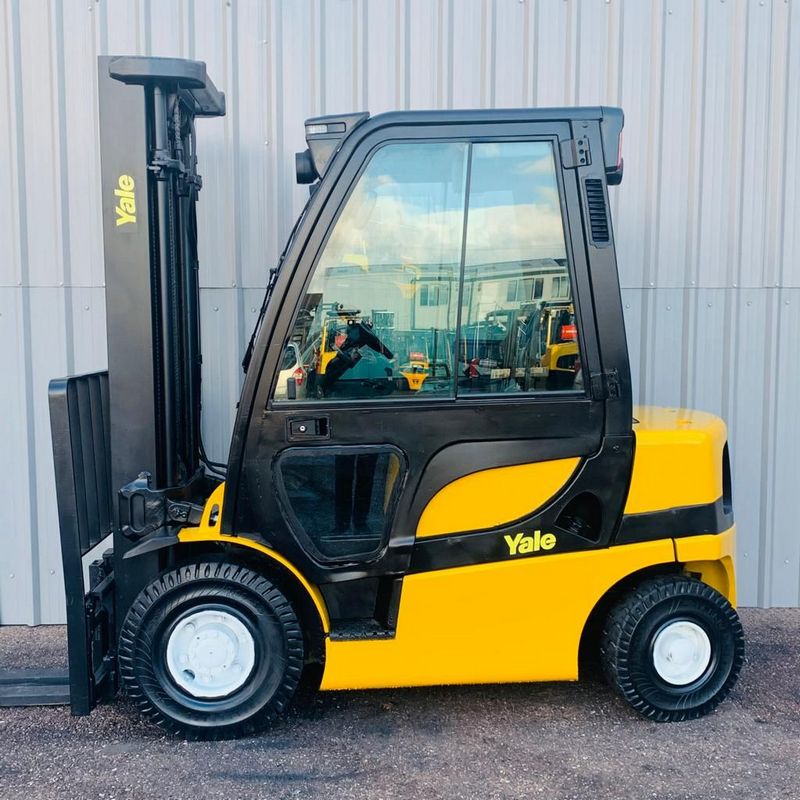

Yale GDP 20 VX
Contents:
Dimensions
| Length To Fork Face | 8.16 ft in (2486 mm) |
| Overall Width | 3.8 ft in (1157 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 5.33 ft in (1623 mm) |
| Ground Clearance | 4.22 in (107 mm) |
| Height To Top Of Overhead Guard | 7.09 ft in (2160 mm) |
| Max Fork Height | 10.67 ft in (3250 mm) |
| Turning Radius | 7.06 ft in (2149 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Capacity | 4409.25 lb (2000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 129.93 ft/min (39.6 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNE92 |
| Power | 48.1 hp (35.8 kw) |
| Torque | 107.7 lb ft (146 Nm) |
| Power Measured @ | 2450 rpm |
| Displacement | 158.7 cu in (2.6 L) |
| Torque Measured @ | 1400 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 8130.7 lb (3688 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (16.9 km/h) |
